Tekbox shielded bag
Details

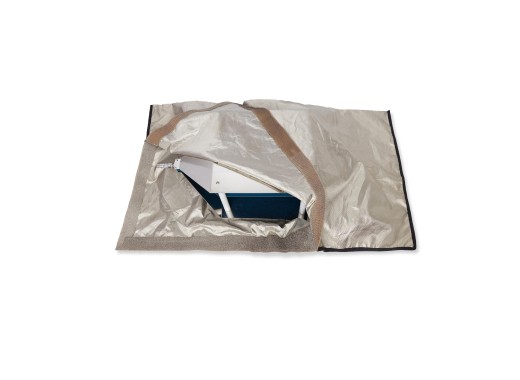

These Tekbox shielded bags are designed to suppress interference from ambient noise when carrying out EMC pre-compliance measurements. The bags are available in two dimensions: 105 x 60 cm and 70 x 40 cm and are composed of two layers of conductive fabric. The bag can be closed at the opening of the bag with the use of conductive Velcro tape.
Shielded bags are a low-cost alternative to shielded tents and are perfect to fit in test equipment such as LISNs or TEM cells.
Models
| Model | TBSB-70/40 | TBSB-105/60 |
| Outer dimensions | 70 cm x 40 cm | 105 cm x 60 cm |
| Opening dimensions | 60 cm diagonal | 80 cm diagonal |
| Weight | 140 gram | 250 gram |
| Price |
Specifications
| Attenuation | ~ 50 dB in the range DC to 2 GHz |
| Shielding | 2 layers of conductive fabrics |
| Seal | Conductive Velcro tape |
| Frame | None |
| Filter panel | None |
Accessories
A Tekbox shielded bag will be delivered with:
- RF cable RG223/N-male to N-male 1 meter
- Repair patch fabrics
Pros and cons
- Cheap alternative to shielded tents
Downloads
| Tekbox shielded bags manual |  (2.46 MB) | Download |
