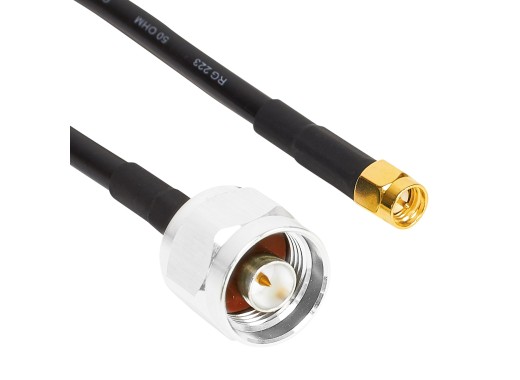

Tekbox cable N-male to SMA-male 75 cm
- Eleshop
- Test & measure
- Cables & clamps
- Coaxial cables
- Tekbox cable N-male to SMA-male 75 cm
Details
The Tekbox RG 223/U is an N-male to SMA-male RF cable. This is a 75cm coaxial cable with a 6GHz bandwidth and a VSWR of <1.3.
Specifications
| Connector | N-male - SMA-male |
| Cable type | RG 223/U |
| Frequency range | DC - 6 GHz |
| Impedance | 50 ± 2 Ω |
| VSWR | < 1.3 (3 GHz) |
| Max power | 280 W (100 MHz) |
| Length | 75 cm |
| Connector material | Copper-tin-zinc plated brass |
| Kink protection | Plastic sleeve |
Downloads
| Tekbox coaxial cables datasheet |  (404.87 KB) | Download |
| Tekbox coaxial cables attenuation table | (24.63 KB) | Download |
-
