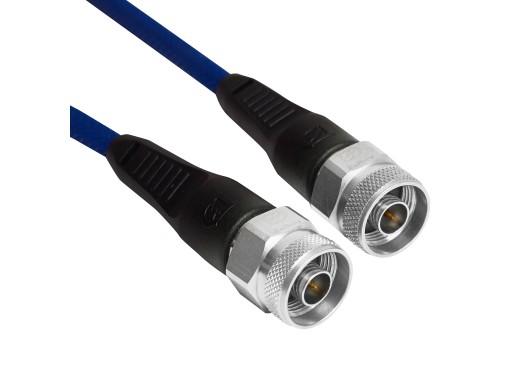

Tekbox cable N-male to N-male 6 GHz
Details
The Tekbox RG142 is an N-male to N-male RF cable.
Please take note that the length of the cable affects the measured signals. Certain frequencies are attenuated differently, as can be seen in the attenuation table in the downloads.
This 75 cm cable is especially for testing and measuring and can be used for more than 1000x.
Specifications
| Connector type | N-male - N-male |
| Cable type | RG 142 |
| Frequency range | DC approx 6 GHz |
| Impedance | 50 ± 2 Ω |
| Length | 75 cm |
Downloads
| Tekbox coaxial cables datasheet |  (404.87 KB) | Download |
| Tekbox coaxial cables attenuation table | (24.63 KB) | Download |
