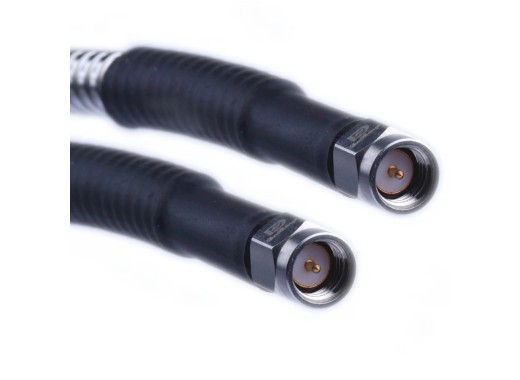

The Tekbox RG 142 (test variant) is an SMA-male to SMA-male low-loss double-shielded coaxial cable, fitted with stainless steel armour and stainless steel precision connectors rated for ≥ 1000 mating cycles.
This is a 75cm RF cable with a 6GHz bandwidth and a VSWR of <1.3, built for repeated lab use and metrology-grade measurements.
Specifications
| Connector | SMA-male - SMA-male |
| Cable type | RG 142 |
| Frequency range | DC - 6 GHz |
| Impedance | 50 ± 2 Ω |
| VSWR | < 1.3 (3 GHz) |
| Mating cycles | ≥ 1000 |
| Max power | 700 W (100 MHz) |
| Length | 75 cm |
| Connector material | Stainless steel |
| Kink protection | Stainless steel armour |
