- Tekbox cable N-male to SMA-male 50 cm
Details

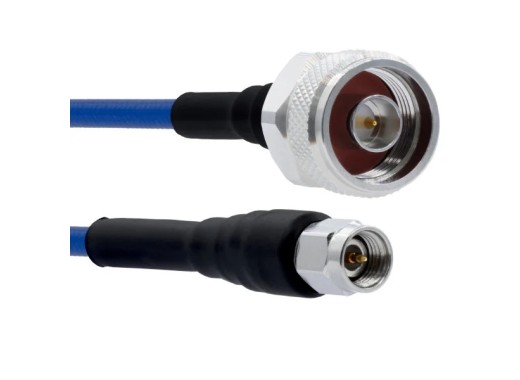

The Tekbox RM141 is an N-male to SMA-male RF cable. This is a 50cm coaxial cable with an 18GHz bandwidth and a VSWR of <1.3.
Specifications
| Connector | N-male - SMA-male |
| Cable type | RM141 |
| Frequency range | DC - 18 GHz |
| Impedance | 50 ± 2 Ω |
| VSWR | < 1.3 (18 GHz) |
| Max power | 250 W (1 GHz) |
| Length | 50 cm |
| Connector material | Stainless steel |
| Kink protection | Semi-rigid copper jacket |
Downloads
| Tekbox coaxial cables datasheet |  (404.87 KB) | Download |
-
