Tekbox cable N-male to N-male 300 cm
- Eleshop
- Test & measure
- Cables & clamps
- Coaxial cables
- Tekbox cable N-male to N-male 300 cm
Details

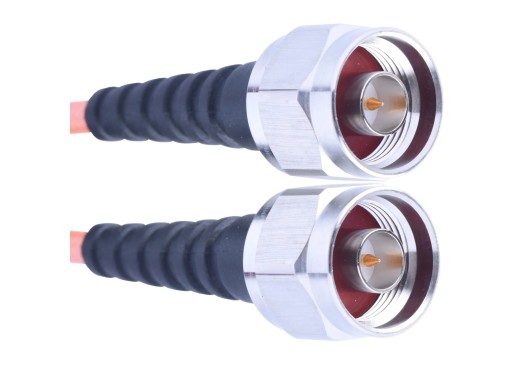

The Tekbox RG 142 is an N-male to N-male RF cable. This is a 300 cm coaxial cable with a 6GHz bandwidth and a VSWR of <1.3.
Specifications
| Connector | N-male - N-male |
| Cable type | RG 142 |
| Frequency range | DC - 6 GHz |
| Impedance | 50 ± 2 Ω |
| VSWR | < 1.3 (3 GHz) |
| Max power | 700 W (100 MHz) |
| Length | 300 cm |
| Connector material | Stainless steel |
| Kink protection | Stainless steel armour |
Downloads
| Tekbox coaxial cables datasheet |  (404.87 KB) | Download |
-
