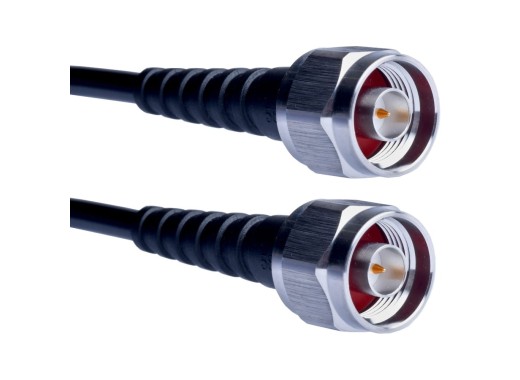

Tekbox cable N-male to N-male 125cm
Details
The Tekbox RG223/U is an N-male to N-male RF cable. This is a 125cm coaxial cable with a 6GHz bandwidth and a VSWR of <1.2.
Specifications
| Connector | N-male - N-male |
| Cable type | RG 223/U |
| Frequency range | DC - 6 GHz |
| Impedance | 50 ± 2 Ω |
| VSWR | < 1.2 (3 GHz) |
| Max power | 280 W (100 MHz) |
| Length | 125 cm |
| Connector material | Copper-tin-zinc plated brass |
| Kink protection | Plastic sleeve |
Downloads
| Tekbox coaxial cables datasheet |  (404.87 KB) | Download |
