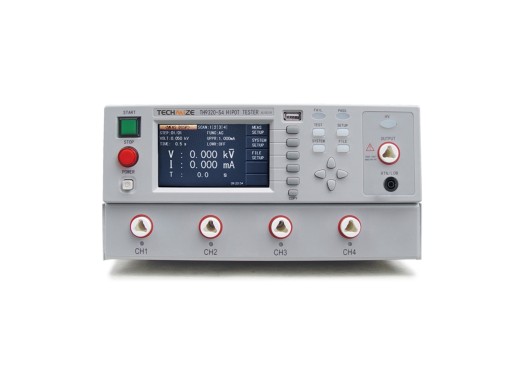

Techmize TH9320-S4 Hi-Pot tester
Details
The Techmize TH9320-S4 is a 4-channel scanning hi-pot tester suitable for the routine safety testing of household appliances, transformers and electrical assemblies. Furthermore, an integrated scan interface routes the test voltages sequentially across all four channels, so several test points on one assembly are checked in a single automated run rather than rewired by hand. This tester runs AC withstand tests to 5kV at 20mA and DC tests to 6kV at 10mA, measures insulation resistance up to 10GΩ, and screens each part with arc detection set across nine selectable levels. A sequence of up to twenty test steps, each with one of four test modes, is set up and monitored on a large 4.3" colour TFT display that shows voltage, current and timing live throughout the run.
Techmize products are manufactured by Tonghui, the company behind well-known high-quality products in the test & measurement industry. With Techmize, Tonghui has introduced its own-branded European product line with local service and support, offering the same level of quality at a fair price.
Model overview
| TH9320 | TH9320-S4 | |
|---|---|---|
| Test channels | 1 | 4 |
| Sequence test steps | 5 | 20 |
| Arc detection | 0.1 - 20 mA | 9 selectable levels |
| Price |
Specifications
| Output voltage range | AC: 0.05 kV - 5 kV DC: 0.05 kV - 6 kV |
| Output voltage resolution | 1 V |
| Output voltage accuracy | ±(1% reading + 5 V) |
| Max. power | 100 VA |
| Max. current | AC: 20 mA DC: 10 mA |
| Output-voltage waveform | Sine, 50 / 60 Hz selectable |
| Insulation resistance range | 0.1 MΩ - 10 GΩ |
| Memory | 20 test files |
| Display | 4.3" dot-matrix TFT LCD (480x272) |
| Interfaces | USB device, USB host, RS232C, PLC, handler |
| Dimensions | 280 x 138 x 420 mm |
| Weight | 18 kg |
Accessories
The TH9320-S4 comes with:
- 5x TH90003R test cable
- TH90003C test cable
- Power cable
Pros and cons
- Large display
- 20 stored sequence test steps
- 9 selectable arc detection levels
- Only 100VA
Downloads
| Techmize TH9320-S4:S8 datasheet |  (520.71 KB) | Download |
| Techmize TH9320 series programming manual | (1.51 MB) | Download |
| Techmize TH9320 series user manual | (924.31 KB) | Download |
