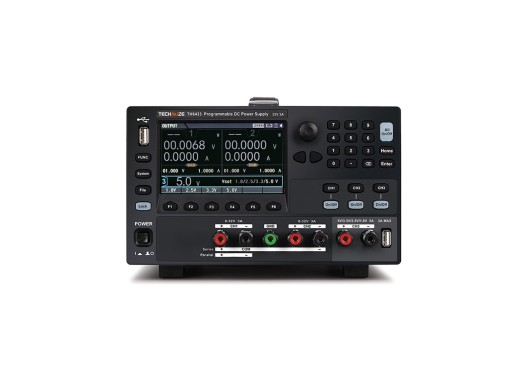

Techmize TH6433 power supply + load
Promotion! This product is temporarily reduced in price until October 31st 2026!
Details
The Techmize TH6433 is a premium 3-channel programmable DC power supply with a built-in 2-channel electronic load, suitable for all R&D, production-line and lab-bench work where source and sink behaviour need to be tested on the same instrument. CH1 and CH2 each deliver 0-32V at up to 3A and can be linked in series for 0-64V/3A or in parallel for 0-32V/6A, while CH3 provides a USB-style fixed-voltage rail at 1.8V, 2.5V, 3.3V or 5V up to 3A, covering the most common digital logic levels without an external supply. Furthermore, this power supply has a 2-channel electronic load that pulls up to 50W per channel in CC, CV, CR or CP mode. That is a meaningful step up from the GW Instek GPP-3323, which shares its 50W load budget across both source channels.
A linear regulator stage keeps ripple at ≤1mVrms and noise low, and front-panel screw connectors on every channel make wiring fast and secure. CH1 and CH2 each support 100 programmable sequence steps with sine, triangle, step, exponential, logarithmic and user-defined profiles, and real-time voltage/current/power sampling can be recorded straight to a USB stick. The power supply comes with many interfaces, including LAN, RS232, GPIB, USB-CDC and USB-TMC, so this supply integrates easily into automated test benches.
Techmize products are manufactured by Tonghui, the company behind well-known high-quality products in the test & measurement industry. With Techmize, Tonghui has introduced its own-branded European product line with local service and support, offering the same level of quality at a fair price.
Model overview
| TH6431 | TH6432 | TH6433 | TH6434 | |
|---|---|---|---|---|
| Total power | 192 W | 192 W | 207 W | 212 W |
| Outputs | 1 | 2 | 3 | 4 |
| Voltage range | 0 - 32 V | 0 - 32 V | CH1/CH2: 0 - 32 V CH3 (USB): 1.8 / 2.5 / 3.3 / 5 V |
CH1/CH2: 0 - 32 V CH3: 0 - 5 V CH4: 0 - 15 V |
| Current range | 0 - 6 A | 0 - 3 A | 0 - 3 A | CH1/CH2: 0 - 3 A CH3/CH4: 0 - 1 A |
| Load channels | 1 | 2 | 2 | 2 |
| Load power | 100 W | 2x 50 W | 2x 50 W | 2x 50 W |
| Price |
Specifications
| Output switch | Each channel |
| Resolution | 1 mV / 0.1 mA (setting) 0.1 mV / 0.1 mA (readback) |
| Ripple | ≤1 mVrms |
| Protection | OVP, OCP, OPP |
| Load modes | CC, CV, CR, CP |
| Sequence waveforms | Sine, triangle, step, exponential, logarithmic, user-defined |
| Interfaces | LAN, RS232, GPIB, USB-CDC, USB-TMC |
| Display | 4.3" colour LCD |
| Dimensions | 215 x 125 x 290 mm |
| Weight | 8 kg |
Accessories
The Techmize TH6433 comes with:
- 1x YT3008 test cable set
- 1x Power cable
Pros and cons
- Two independent 50W electronic loads on channels 1 and 2
- Both series and parallel modes
- LAN, RS232, GPIB and USB interfaces
- Channel 3 is fixed-voltage selectable, not continuously adjustable
Downloads
| Techmize TH6430 series datasheet |  (339.21 KB) | Download |
| Techmize TH6400 series user manual | (1012.96 KB) | Download |
