Table clamp KCC 50/75 for fume extractor (Quick 6101A1 & 6102A1)
Details

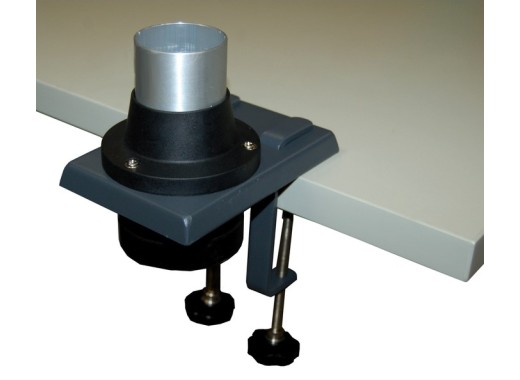

This table clamp can be used to make an fume extraction installation. The clamp is fixed on the side of a table and then an articulated arm can be connected. On the underside between the extraction machine and the table clamp, a flexible extraction tube can be placed and the articulated arm can be mounted on the top side. The flexible suction tube and articulated arm can be found below under the heading 'Options'.
Specifications
| Diameter connection downside (towards the fume extractor) | 75 mm |
| Diameter connection upwards | 50 mm |
Options
Please note: The directional suction tube supplied with the Quick 6101A1 and 6102A1 does not fit on the table clamp.| Flexible suction tube | This tube is connected between the suction machine and the table clamp. | |
| Articulated arm with funnel | This arm can be connected to the table clamp and can be fixed in every desired position. |
