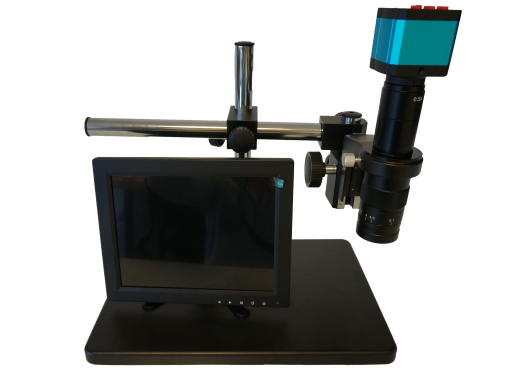

STL7 Monoculair microscope camera
Details
This monocular microscope provides a clear and sharp image and is especially made for use with a camera. The microscope comes with a Full HD camera and a 10.1" screen on which the image of the camera is directly displayed. Due to the high quality of the camera, it is easy to analyze small PCBs on the screen. The camera has an SD-card slot which makes it possible to record videos of the work process. Furthermore, it is also possible to to connect a mouse to control various display functions.
Specifications
| Magnification eyepiece | 0.5 X |
| Magnification objective | 0.7 - 4.5 X |
| Magnification range | 0.35 - 2.25 X |
| FOV range | 17.6 - 2.7 mm |
| Working distance | 100 mm |
| Screen | 10.1" tft led (800X600) |
| Screen connectivity | BNC, AV, VGA |
| Screen power supply | 12V 1.5A |
| Camera | Full HD 1920x1080 |
| Camera connectivity | VGA |
| Dimensions | 380x260x22 mm |
