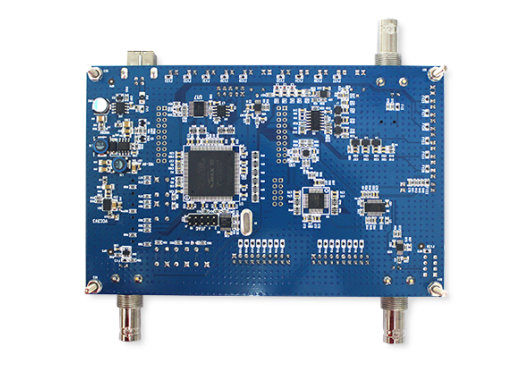

STB Signal test board

The main function of the signal STB 3 breadboard of Siglent is for teaching and demonstrating the use of a oscilloscope. The STB board output includes wave, sine, random code, pulse, burst and AM signals. Simple settings allow the user to adjust the level of SDS1000 Series oscilloscope system to learn the vertical adjustment system, trigger system. This helps userd quickly master the use of a digital oscilloscope.

Please refer to the user manual for more information.
