Siglent SDS2000X Plus SPL2016 logic analyser option
Details

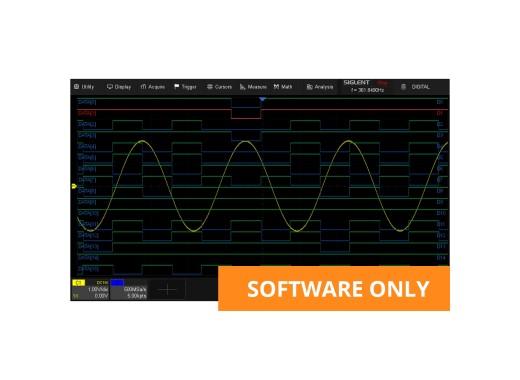

Extension for the Siglent 2000X (Plus) and 5000X series to add logic analysis to the capabilities of the oscilloscopes. Please note that the software is included, but may require a firmware update.
Specifications
| Input channels | 16 |
| Maximum Input Voltage | ± 50 V Peak |
| Threshold Precision | ± (3% of threshold setting + 200 mV) |
| Input Dynamic Range | ± 20 V |
| Minimum Input Voltage Swing | 800 mVpp |
| Maximum Input Frequency | 60 MHz |
| Sample Rate | 500 MSa/s |
| Minimum Detectable Pulse Width | 3.3 ns |
| User defined threshold range | ± 10 V in 10 mV steps |
