Sourcetronic ST2832 LCR meter
Details

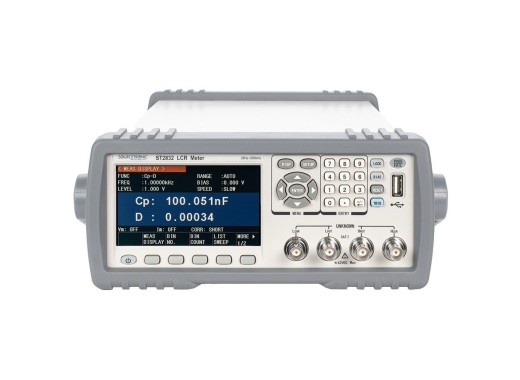

The Sourcetronic ST2832 LCR meter is an extensive bench-top meter that does not look out of place in the average workplace.
This meter can take measurements between 20 Hz and 200 kHz. Furthermore, the basic accuracy of this meter is 0.05% with a test speed of max. 75 times/s. This allows the LCR values of a circuit to be measured easily and very accurately. Furthermore this meter also has an AC test signal function with constant level and can be used to apply a DC bias voltage.
The ST2832 can perform many different measurements, the results of which are clear on the 4.3" display. At the same time two different measurements can be shown on the display. Furthermore, the meter has several interfaces with which the device can be controlled or read out. It also has a built-in comparator with which results can be counted and sorted.
Model overview
The models in the ST283X series differ on a few points. These differences are listed below.| Models | ST2830 | ST2832 |
|---|---|---|
| Testfrequency | 50Hz-100kHz | 20Hz-200kHz |
| AC test signal (constant level) | no |
yes |
| DCR test signal level | 1V DC | 50mV-2V DC |
| DC bias voltage | no |
yes (0-5V) |
| Price |
Specifications
| Range of measurement parameters | |
| DCR, R, X, |Z| | 0.00001Ω - 99.9999MΩ |
| G, B, |Y| | 0.00001nS - 99.9999S |
| L | 0.00001µH - 9.9999kH |
| C | 0.00001pF - 9.99999F |
| Q | 0.0001 - 99999 |
| D | 0.00001 - 9.99999 |
| θ DEG (RAD) | -179.999° - 179.999° (-3.14159° - 3.14159°) |
| Remaining specifications | |
| Digits | 6 |
| Test frequency | 50 Hz - 100 kHz |
| Precision | 0.05% |
| Test signal | 10 mV - 2 Vrms 100 μA - 20 mArms |
| Resolution | 10 mV/0.1 mA |
| Display | 4.3" TFT LCD display |
| Interfaces | RS232, USB Host, USB Device, Handler |
| Dimensions | 235 x 105 x 360 mm |
| Weight | 3.6 kg |
Accessories
The Sourcetronic ST283 LCR meter is standard delivered including:
- 4-channel Kelvin clamp test cables
- 4-channel test fixture
- Power cord
- Calibration certificat
Pros and cons
- Great precision
- Fast measurement refresh rate
Downloads
| Manual Sourcetronic ST283X |
 (1.7 MB) |
Download |
