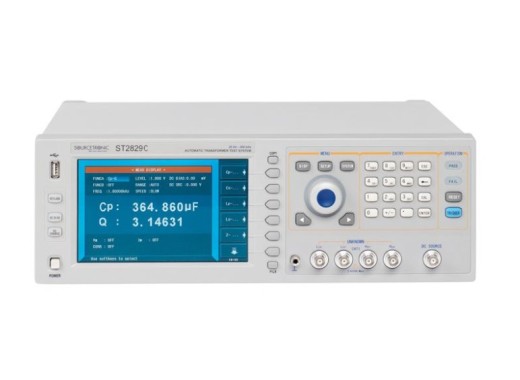

Sourcetronic ST2829C LCR Measuring Bridge

The Sourcetronic ST2829C precision LCR meter is an extensive bench-top meter. This meter can take measurements between 20 Hz and 1 MHz. Furthermore, the basic accuracy of this meter is 0.05%, which means that the LCR values can be measured very accurately. The ST2829C has an internal DC bias source, independent DC voltage source, and a 150-point list-sweep function. It is also possible to scan and analyse graphically based on frequency, AC level and DC bias.

The LCR meter displays the measured results clearly on the 7" TFT LCD display. Two measurements can be shown at the same time, this makes the meter easy in use. Furthermore, the meter has several interfaces, a calibration function, and a built-in comparator with which results can be counted and sorted.

Model overview

Model	ST2829A	ST2829C
Bandwidth	20 Hz - 300 kHz	20 Hz - 1 MHz
Price	3490 €3,490.00 Excl. VAT	5690 €5,690.00 Excl. VAT

Specifications

Range of measurement parameters
|Z|, R, X, DCR	0.00001 Ω - 99.9999 MΩ
|Y|,G, B	0.00001 nS - 99.9999 S
C	0.00001 pF - 9.99999 F
L	0.00001 µ - 9.9999 kH
D	0.00001 - 9.99999
Q	0.0001 - 99999
θ(DEG)	-179.999° - 179.999°
θ(RAD)	-π - π
Δ%	-999.999 % - 999.999 %

Remaining specifications
Precision	0.05 %
Test signal	5 mV – 10 Vrms 50 µA – 100 mA
Resolution	1 mHz
Range modes	Auto, hold
Trigger mode	Internal, external, manual, BUS
Measuring speed	9 ms - 187 ms (3 modes)
Internal nonvolatile memory	100 sets of LCRZ setting files 201 times test results 10 sets of GIF image CSV data files
Display	800 x 480 TFT LCD screen
Interfaces	USB, RS232, I/O Handler, DCI, GPIB / LAN-LXI (option*)
Dimensions	400 x 132 x 385 mm
Weight	13 kg

**There is a possibility to equip the ST2827C with a GPIB / LAN-LXI interface at an additional cost. If you are interested in this, please contact us!

Accessories

The Sourcetronic ST2829C LCR meter will be delivered including:

• ST26011A Kelvin-Terminal-Test-Leads
• ST26048 4-terminal test fixture
• ST26010 Gilded shorting plate
• Power cable
• Factory calibration certificate
