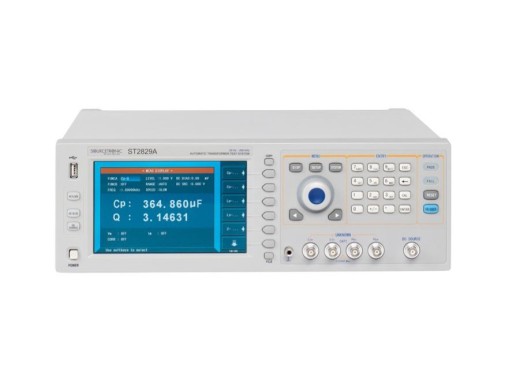

The Sourcetronic ST2829A precision LCR meter is an extensive bench-top meter. This meter can take measurements between 20 Hz and 300 kHz. Furthermore, the basic accuracy of this meter is 0.05%, which means that the LCR values can be measured very accurately. The ST2829A has an internal DC bias source, independent DC voltage source, and a 150-point list-sweep function. It is also possible to scan and analyse graphically based on frequency, AC level and DC bias.
The LCR meter displays the measured results clearly on the 7" TFT LCD display. Two measurements can be shown at the same time, this makes the meter easy in use. Furthermore, the meter has several interfaces, a calibration function, and a built-in comparator with which results can be counted and sorted.
Model overview
| Model | ST2829A | ST2829C
|
|---|
| Bandwidth |
20 Hz - 300 kHz |
20 Hz - 1 MHz |
| Price |
3490
€3,490.00
Excl. VAT
|
5690
€5,690.00
Excl. VAT
|
Specifications
| Range of measurement parameters |
|
| |Z|, R, X, DCR |
0.00001 Ω - 99.9999 MΩ |
| |Y|,G, B |
0.00001 nS - 99.9999 S |
| C |
0.00001 pF - 9.99999 F |
| L |
0.00001 µ - 9.9999 kH |
| D |
0.00001 - 9.99999 |
| Q |
0.0001 - 99999 |
| θ(DEG) |
-179.999° - 179.999° |
| θ(RAD) |
-π - π |
| Δ% |
-999.999 % - 999.999 % |
| Remaining specifications |
|
| Precision |
0.05 % |
| Test signal |
5 mV – 10 Vrms
50 µA – 100 mA |
| Resolution |
1 mHz |
| Range modes |
Auto, hold |
| Trigger mode |
Internal, external, manual, BUS |
| Measuring speed |
9 ms - 187 ms (3 modes) |
| Internal nonvolatile memory |
100 sets of LCRZ setting files 201 times test results
10 sets of GIF image
CSV data files |
| Display |
800 x 480 TFT LCD screen |
| Interfaces |
USB, RS232, I/O Handler, DCI, GPIB / LAN-LXI (option*) |
| Dimensions |
400 x 132 x 385 mm |
| Weight |
13 kg |
**There is a possibility to equip the ST2827A with a GPIB / LAN-LXI interface at an additional cost. If you are interested in this, please contact us!
Accessories
The Sourcetronic ST2829A LCR meter will be delivered including:
- ST26011A Kelvin-Terminal-Test-Leads
- ST26048 4-terminal test fixture
- ST26010 Gilded shorting plate
- Power cable
- Factory calibration certificate
