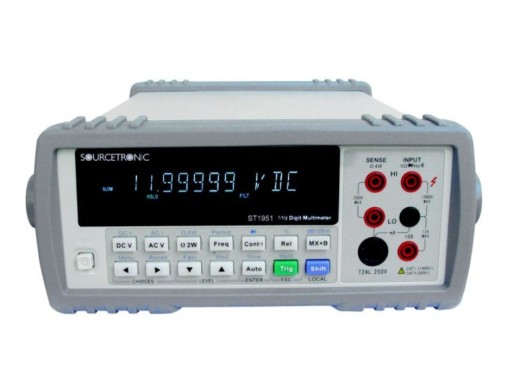

The Sourcetronic ST1951 true RMS multimeter is a 5 1/2 digit high precision digital table multimeter. The multimeter is able to measure DC and AC voltage, DC and AC current, resistance, frequency, period, continuity and diode. Additionally, it has multiple mathematical operation functions and also features a HI/IN/LO comparator function. Also, statistics such as MAX/MIN/AVER/STD are available, and 512 readings can be stored. Even up to 30,000 readings can be stored without statistics. The sourcetronic ST1951 includes a reading hold function that gives the most stable measurement of a data block accroding to the given accuracy.
The ST1951 has a large VFD screen with high brightness and is equipped with USB interface. This 199,999 counts multimeter can measure up to 1000 measurements per second and is able to calibrate without opening the case.
Specifications
Bandwidth |
100 kHz |
DC voltage |
Up to 1000 V |
DC current |
Up to 10 A |
AC voltage |
Up to 750 V |
AC current |
Up to 1 A |
Max. Resistance |
Up to 100 MΩ (2W/4W mode) |
Frequency |
Up to 1.1 MHz |
Math functions |
%, dB, dBm, mX +b, and REL |
Range |
Auto, Manual |
Trigger mode |
Internal, manual, BUS, external |
Display |
5 1/2 digit 119.999 counts |
Measurement speed |
Up to 1000 measurements per second |
Dimensions |
277 x 115 x 365 mm |
Weight |
2.5 kg |
Accessories
The Sourcetronic ST1951 multimeter will be delivered including:
- Pair of test leads
- Power cord
- Factory calibration
