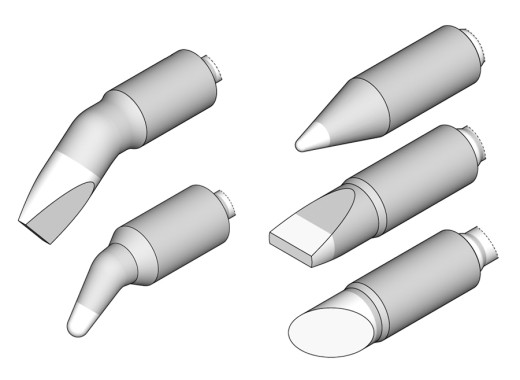

JBC C470 series soldering tips

JBC C470 soldering tips of various sizes and applications.

JBC soldering tips have a long life span, and thanks to the JBC heating system they last up to 5 times longer than tips from competing brands.

Because of their small size, these tips are suitable for SMD, for working under a microscope or for regular components.

These tips are compatible with the JBC T470 soldering iron.

You can select the type of tip you want to buy in the top right corner. The different models are described below

Quick navigation

Conical

Conical bent

Chisel

Chisel bent

Bevel

Barrel

Round connector

Knife

Blade

Drag

Faston terminal

RF shield removal

Solder pot

Heat stacking

Customized

Conical

Model	Diameter tip (mm)	Price	Stock
C470-001	1.7	42.8 €42.80 Excl. VAT

▲ Back to top

Conical bent

Model	Diameter tip (mm)	Price	Stock
C470-008	3.5	42.8 €42.80 Excl. VAT

▲ Back to top

Chisel

Model	Dimensions tip (mm)	Tip length (mm)	Price	Stock
C470-013	2.0 x 0.9	13.0	42.8 €42.80 Excl. VAT
C470-036	2.0 x 1.0	14.0	42.8 €42.80 Excl. VAT
C470-014	4.0 x 1.3	13.0	42.8 €42.80 Excl. VAT
C470-040	4.0 x 1.3	28.0	42.8 €42.80 Excl. VAT
C470-035	4.0 x 2.5	10.5	42.8 €42.80 Excl. VAT
C470-017	5.0 x 1.2	13.0	42.8 €42.80 Excl. VAT
C470-009	5.5 x 1.5	18.4	42.8 €42.80 Excl. VAT
C470-002	6.0 x 1.5	10.4	42.8 €42.80 Excl. VAT
C470-015	6.0 x 1.7	13.0	42.8 €42.80 Excl. VAT
C470-004	7.5 x 1.5	10.3	42.8 €42.80 Excl. VAT
C470-016	7.5 x 1.7	13.0	42.8 €42.80 Excl. VAT
C470-058	8.0 x 2.5	16.5	42.8 €42.80 Excl. VAT
C470-039	8.5 x 2.5	10.4	42.8 €42.80 Excl. VAT
C470-006	10.0 x 2.5	10.4	45.66 €45.66 Excl. VAT
C470-021	12.0 x 4.0	19.0	62.78 €62.78 Excl. VAT
C470-007	15.5 x 2.5	15.0	45.66 €45.66 Excl. VAT
C470-067	15.5 x 2.5	15.0	68.48 €68.48 Excl. VAT
C470-022	28.0 x 4.0	15.0	96.06 €96.06 Excl. VAT

▲ Back to top

Chisel bent

Model	Dimensions tip (mm)	Length tip (mm)	Price	Stock
C470-034	3.5 x 1.5	18.0	40.85 €40.85 Excl. VAT
C470-018	8.9 x 1.7	23.5	45.66 €45.66 Excl. VAT

▲ Back to top

Bevel

Model	Diameter tip (mm)	Price	Stock
C470-019	3.5	42.8 €42.80 Excl. VAT
C470-003	7.5	42.75 €42.75 Excl. VAT
C470-056	10.0	42.8 €42.80 Excl. VAT

▲ Back to top

Barrel

Model	Diameter tip (mm)	Price	Stock
C470-028	1.2	62.78 €62.78 Excl. VAT
C470-020	2.4	62.78 €62.78 Excl. VAT
C470-048	3.4	62.78 €62.78 Excl. VAT
C470-033	3.65	62.78 €62.78 Excl. VAT
C470-055	4.0	62.78 €62.78 Excl. VAT
C470-030	5.0	62.78 €62.78 Excl. VAT
C470-049	5.2	62.78 €62.78 Excl. VAT
C470-041	12.5	62.78 €62.78 Excl. VAT

▲ Back to top

Round connector

Model	Diameter round (mm)	Price	Stock
C470-031	3.2	62.78 €62.78 Excl. VAT
C470-042	4.8	53 €53.00 Excl. VAT
C470-066	5.5	62.78 €62.78 Excl. VAT
C470-037	8.0	62.78 €62.78 Excl. VAT
C470-065	8.5	62.78 €62.78 Excl. VAT
C470-012	R6 (S1)	60.8 €60.80 Excl. VAT
C470-038	R6 (S2)	62.78 €62.78 Excl. VAT
C470-047	14.0	60.8 €60.80 Excl. VAT
C470-010	R8	60.8 €60.80 Excl. VAT
C470-052	R8.5	62.78 €62.78 Excl. VAT
C470-029	R31	62.78 €62.78 Excl. VAT

▲ Back to top

Knife

Model	Dimensions tip (mm)	Price	Stock
C470-061	10.6 x 0.1	62.78 €62.78 Excl. VAT

▲ Back to top

Blade

Model	Dimensions tip (mm)	Price	Stock
C470-064	10.0 x 2.5	62.78 €62.78 Excl. VAT
C470-059	20.0 x 2.4	66.58 €66.58 Excl. VAT
C470-023	32.0 x 2.4	96.06 €96.06 Excl. VAT
C470-063	37.0 x 2.4	93.2 €93.20 Excl. VAT
C470-046	7.5 x 1.5/4.5	46.61 €46.61 Excl. VAT
C470-050	4.6 x 8.0	62.78 €62.78 Excl. VAT

▲ Back to top

Drag

Model	Dimensions tip (mm)	Price	Stock
C470-043	1.1 x 10.0	45.66 €45.66 Excl. VAT

▲ Back to top

Faston terminal

Model	Dimensions tip (mm)	Price	Stock
C470-051	21.0	54.88 €54.88 Excl. VAT
C470-070	21.0	106.4 €106.40 Excl. VAT

▲ Back to top

RF shield removal

Model	Dimensions tip (mm)	Price	Stock
C470-044	10.0 x 15.0	71.34 €71.34 Excl. VAT
C470-057	20.0 x 30.0	93.2 €93.20 Excl. VAT
C470-005	15.0	45.66 €45.66 Excl. VAT
C470-027	43.0 x 20.0	178.84 €178.84 Excl. VAT

▲ Back to top

Solder pot

Model	Dimensions tip (mm)	Price	Stock
C470-SP01	18.0 x 15.0	115.25 €115.25 Excl. VAT
C470-SP42	40.0 x 40.0	229.02 €229.02 Excl. VAT

▲ Back to top

Heat stacking

Model	Diameter tip (mm)	Price	Stock
C470-025	1.7	28.06 €28.06 Excl. VAT
C470-026	3.5	47.56 €47.56 Excl. VAT
C470-032	9.0	45.6 €45.60 Excl. VAT

▲ Back to top

Customized

Model	Diameter tip (mm)	Price	Stock
C470-011	4.2	58.02 €58.02 Excl. VAT
C470-045	3.5	38.67 €38.67 Excl. VAT

▲ Back to top

We can supply all T470 soldering tips. If you want a tip that is not listed here, please contact us.

Large users

If you order 10 pieces or more at once, we will give you a discount (also on mixed orders). Please contact us for a tailor-made offer
