SMD resistor and capacitor book SMDKIT1206

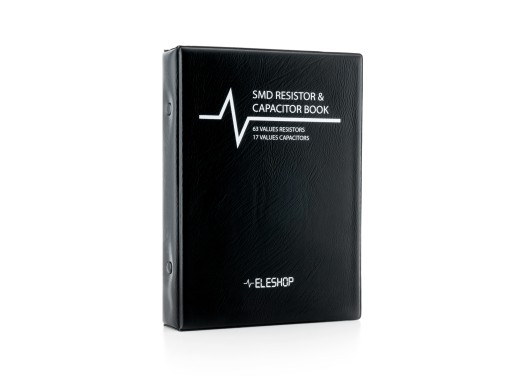

The picture may differ from the actual book.
Details
The SMDKIT1206 is a resistor and capacitor book that contains resistors of 63 different values in 1206 housings and capacitors of 17 different values. The kit contains resistors ranging from 0Ω to 2MΩ all with an accuracy of ± 5%. The book contains 50 pieces of each resistor capacitor value. The capacitors in the kit range from 15pF to 1μF. The capacitors ranging from 15pF to 220pF have a voltage of 50V and an accuracy of ± 5%. The capacitors ranging from 15nF to 10nF have a voltage of 50V and an accuracy ± 10%. The book has a small size and therefore it is easy to take it everywhere and the book can be reused if all components are exhausted.
For other resistor housings see the SMDKIT0201, SMDKIT0402, SMDKIT0603 and the SMDKIT0805.
Resistor and capacitor values
The book contains the following resistors and capacitors:Resistors
| 0 Ω | 1 Ω | 1.2 Ω | 1.5 Ω | 2 Ω | 2.7 Ω | 3.3 Ω |
| 4.3 Ω | 4.7 Ω | 5.1 Ω | 6.8 Ω | 8.2 Ω | 10 Ω | 12 Ω |
| 15 Ω | 20 Ω | 27 Ω | 33 Ω | 43 Ω | 47 Ω | 51 Ω |
| 68 Ω | 82 Ω | 100 Ω | 120 Ω | 150 Ω | 200 Ω | 270 Ω |
| 330 Ω | 430 Ω | 470 Ω | 510 Ω | 680 Ω | 820 Ω | 1 kΩ |
| 1.2 kΩ | 1.5 kΩ | 2 kΩ | 2.7 kΩ | 3.3 kΩ | 4.3 kΩ | 4.7 kΩ |
| 5.1 kΩ | 6.8 kΩ | 8.2 kΩ | 10 kΩ | 12 kΩ | 15 kΩ | 20 kΩ |
| 27 kΩ | 33 kΩ | 43 kΩ | 47 kΩ | 51 kΩ | 68 kΩ | 82 kΩ |
| 100 kΩ | 120 kΩ | 150 kΩ | 200 kΩ | 270 kΩ | 330 kΩ | 430 kΩ |
| 470 kΩ | 510 kΩ | 680 kΩ | 820 kΩ | 1 MΩ | 2 MΩ |
Capacitors
| 15 pF ± 5 %, 50V | 22 pF ± 5 %, 50V | 27 pF ± 5 %, 50V |
| 33 pF ± 5 %, 50V | 47 pF ± 5 %, 50V | 68 pF ± 5 %, 50V |
| 82 pF ± 5 %, 50V | 100 pF ± 5 %, 50V | 120 pF ± 5 %, 50V |
| 150 pF ± 5 %, 50V | 180 pF ± 5 %, 50V | 220 pF ± 5 %, 50V |
| 1 nF ± 10 %, 50V | 10 nF ± 10 %, 50V | 100 nF ± 10 %, 25V |
| 470 nF ± 10 %, 50V | 1 μF ± 10 %, 50V |
