SMA female calibration set
Details

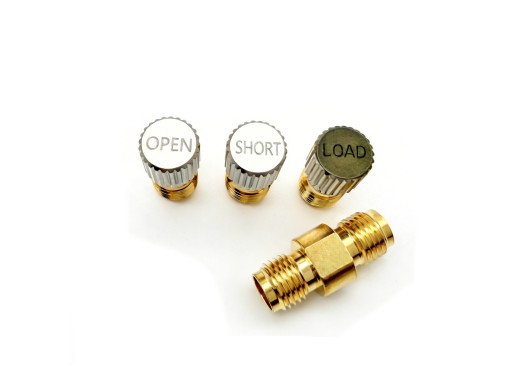

The HG113 is a precision SMA female calibration set meant for VNA calibration applications. The set contains all essential calibration standards, including a 50Ω load termination with calibrated impedance characteristics, an open circuit standard, a short circuit standard, and through adapters for two-port measurements. Eleshop also offers a male version of this set.
Specifications
| Connector type | SMA Female (50 Ω) |
| Frequency range | DC to 3 GHz |
| Load | |
| Impedance (Z) | 50 Ω |
| Return loss (3 GHz) | ≥ 34 dB |
| Short | |
| Impedance | 50 Ω |
| Delay | 26.12 ps |
| Through | |
| Impedance | 50 Ω |
| Delay | 50.7 ps |
| Loss | 2.34 GΩ/s (0.013 dB GHz) |
| Open | |
| Impedance | 50 Ω |
| Delay | 27.91 ps |
| Loss (Primary) | 0.87 GΩ/s (0.004 dB GHz) |
| Loss (Secondary) | 9.68 GΩ/s (0.047 dB GHz) |
Accessories
The SMA female calibration set comes by default with:
- 1x SMA female short standard
- 1x SMA female open standard
- 1x SMA female 50Ω load
- 1x SMA female to SMA female through adapter
Downloads
| SMA female calibration set datasheet |  (118.2 KB) | Download |
