Details

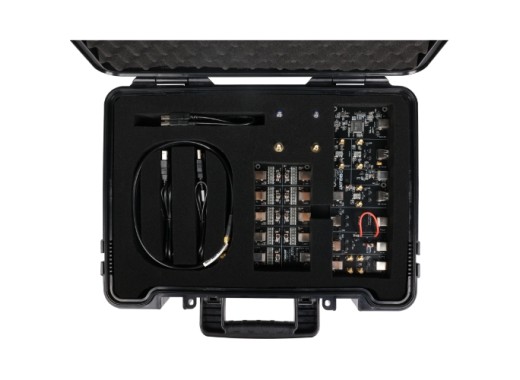

FX-USB2 is a test fixture for the Siglent SDS7000A digital oscilloscope, for which you can perform USB-IF test on all electrical items of hosts, devices and hubs.
Contents
The test fixture comes with:
- 1x Signal board (USBTF_SQ)
- 1x Load board (USBTF_R)
- 2x SMA cable
- 2x BNC-SMA adapter
- 2x Short type-A to type-B cable
- 2x 1 meter type-A to type-B cable
- 2x 50Ω terminal (SMA)
Downloads
(2.39 MB)
-
