Siglent SSM5321A switch matrix
Details
The Siglent SSM5321A is part of the SSM5000A series of switch matrixes. It can expand the number of test ports of spectrum and network analysers, signal sources or other equipment. Another useful application is the transmission (and receiving) of many parameters when testing multiple DUTs. It features standard SMA compatible 3.5mm RF connectors. The switch matrix is compatible with all other brands, not just Siglent.
The product supports USB, LAN and has Direct Control (in/out) interfaces. Furthermore, the Direct Control interface on the switch matrix can further expand the number of test ports and supports a simplified multi-port calibration algorithm, to improve the efficiency of calibrations.

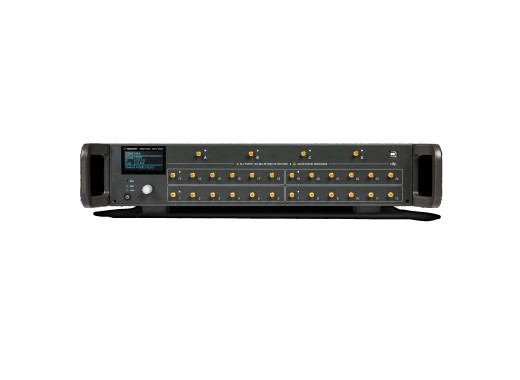

Take note that the images displayed are of the SSM5144A model. Other models have a similar layout.
Model overview
| Model | Input/output ports | Frequency range | Price |
|---|---|---|---|
| SSM5122A | 2 input / 12 output | 9 kHz - 9 GHz | |
| SSM5124A | 2 input / 24 output | 9 kHz - 9 GHz | |
| SSM5142A | 4 input / 12 output | 9 kHz - 9 GHz | |
| SSM5144A | 4 input / 24 output | 9 kHz - 9 GHz | |
| SSM5321A | 2 input / 6 output | 100 kHz - 26.5 GHz | |
| SSM5342A | 4 input / 12 output | 100 kHz - 26.5 GHz |
Specifications
| Max. RF input power | 20 dBm |
| Max. input DC voltage | 35 V |
| Interfaces | USB host/device, LAN, Direct Control (in/out) |
| Display | 2.4" LCD |
| Dimensions | 88.5 x 425 x 417.6 mm |
| Weight | 6.65 kg |
Accessories
All SSM5000A products come by default with:
- Power cord
- USB cable
Downloads
| Siglent SSM5000A series datasheet |  (843.46 KB) | Download |
| Siglent SSM5000A series manual | (1.94 MB) | Download |
