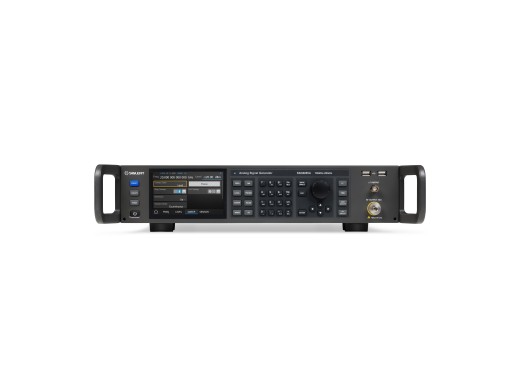

The Siglent SSG6000A series are high quality RF signal generators. The SSG6085A has a frequency range from 100kHz - 20GHz. The RF generator has excellent signal purity with a SSB phase noise of < -135dBc/Hz at 1GHz.
Model overview
We offer 3 different models in the Siglent SSG6000A series, which differ in their frequency range.
| Model |
SSG6083A
|
SSG6085A
|
SSG6087A
|
|---|
| Frequency range |
100 kHz - 13.6 GHz |
100 kHz - 20 GHz |
100 kHz - 40 GHz |
| Price |
21050
€21,050.00
Excl. VAT
|
24430
€24,430.00
Excl. VAT
|
46070
€46,070.00
Excl. VAT
|
Specifications
| Frequency resolution | 0.01 Hz |
| Output amplitude range | -130 dBm up to +24 dBm (max) |
| Amplitude precision | < 0.5 dB |
| Phase noise | < -135 dBc / Hz (@ 1 GHz, 20 kHz offset) |
| Level error | ≤ 0.7 dB |
| Analogue modulation | AM, PM, FM | |
| Frequency sweep shape | triangle, saw-tooth |
| Frequency sweep mode | single, continuous |
| Trigger source | Auto, keyboard, external connector, bus (GPIB, USB, LAN) |
| Output impedance | 50 Ω |
| Interfaces | USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet) |
| Display | 5" (800x480) TFT LCD |
| Dimensions | 482 x 104 x 540 mm |
| Weight | 10.4 kg |
Downloads
(1.78 MB)
