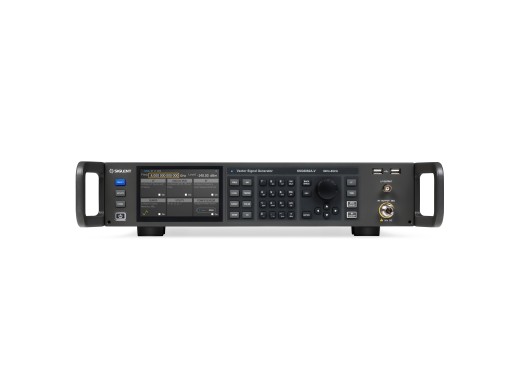

Siglent SSG6082A-V RF signal generator
Details
The Siglent SSG6082A-V is an RF signal generator with a broad frequency range, making it suitable for a wide range of applications. Its frequency range covers 9 kHz to 8 GHz, and it features a user-friendly 5" touchscreen interface. This generator is designed for broadcast, navigation, cellular, and wireless applications, catering to diverse industry needs.
Specifications
| Frequency range | 9 kHz to 8 GHz |
| Frequency precision | 0.001 Hz |
| Output amplitude range | -140 dBm up to +30 dBm |
| Phase noise | -132 dBc/ Hz @ 1 GHz |
| Frequency sweep Mode | Triangle, saw-tooth Single, continuous |
| Trigger source | external trigger signal (user 1 or user 2 at rear), rotary knob, touch panel, remote control |
| Output impedance | 50 Ω |
| Interfaces | LAN RJ-45, USB |
| Display | 5" capacitive touchscreen (800x480) |
| Dimensions | 482 x 104 x 540 mm |
| Weight | 10.66 kg |
Accessories
The SSG6082A-Vcomes by default with:
- USB cable
- Power Cord
Downloads
| Siglent SSG6082A datasheet |  (2.21 MB) | Download |
