3499 €3,499.00 Excl. VAT
Loading stock info
  •
Product number: ELE002487

Be the first to review this product

Details

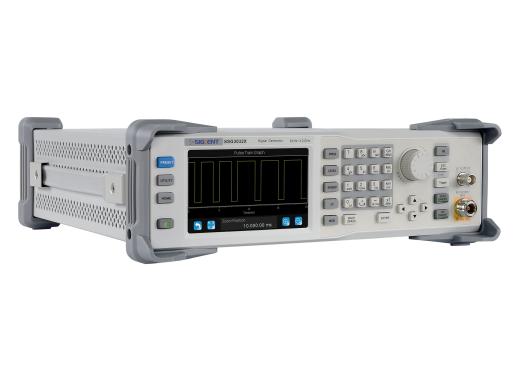

The Siglent SSG3032X RF signal generator belongs to the SSG3000X series and has a bandwidth (CW) of 9 kHz - 3.2 GHz.

Siglent's SSG3000X series is a series of new high-end signal generators. These generators have a large bandwidth and a small frequency resolution. This series offers all the necessary equipment for sweep control and normal analogue modulation such as AM, FM, and PM. Furthermore, these generators also offer a function for pulse modulation and a pulse generator.
The generators can be operated via the buttons and the 5" TFT touchscreen display but also with the mouse and keyboard. Furthermore, the generator can be operated externally via USB, LAN and optional GPIB interfaces and operation via a web browser on a PC or mobile interface is also supported. The '-IQE- models of this series can also generate IQ-modulated signals in cooperation with a baseband generator such as the Siglent SDG6000X series.
This series is an excellent choice for R&D, education and production purposes.

Model overview

The models in the SSG3000X series differ mainly in bandwidth. The major differences in specifications are listed in the table below.

Model SSG3021X SSG3021X-IQE SSG3032X SSG3032X-IQE
Bandwidth (CW) 9 kHz - 2.1 GHz 9 kHz - 2.1 GHz 9 kHz - 3.2 GHz 9 kHz - 3.2 GHz
Bandwidth (IQ)
No
10 MHz - 2.1 GHz
No
10 MHz - 3.2 GHz
Price (incl. BTW)  1999 €1,999.00 Excl. VAT 4299 €4,299.00 Excl. VAT 3499 €3,499.00 Excl. VAT 5699 €5,699.00 Excl. VAT

Specifications

Frequency precision 0.01 Hz
Output amplitude range -110 dBm up to +13 dBm
Amplitude precision 0.01 dB
Phase noise-110 dBc/ Hz @ 1 GHz
Pulse modulation, on/off ratio>70 dBc
Frequency sweep
Vorm
Mode

Triangle, saw-tooth
Single, continuous
Trigger sourceAuto, keyboard, extern connector, bus
Frequency resolution10 MHz
Output impedance50 Ω
InterfacesUSB Host/Device, Lan, Optional GPIB
Display5" capacitive touchscreen (800x480)
Dimensions338 x 113 x 369
Weight4.84 kg

Options

USB to GPIB With this option, you can can control the function generator through GPIB.

USB-GPIB

Siglent USB-GPIB adapter
123 €123.00 Excl. VAT
Info

Accessories

The Siglent SSG3032X comes with the following accessories:
  • Quick start
  • USB cable
  • Calibration certificate
  • Power cord
