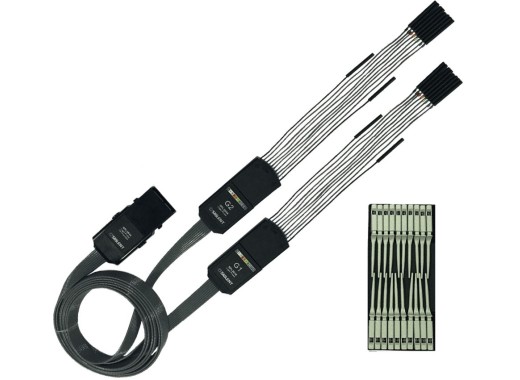

Siglent SPL2016 logic analyser
Details
Extension for the Siglent 2000X (Plus / HD), 3000X HD, 5000X and 6000A series to add logic analysis to the capabilities of the oscilloscopes.
Please note: In order to use this logic analyzer, you must also purchase the corresponding software. There is different software for the 2000X, 2000X Plus, 2000X HD, 3000X HD, 5000X and 6000A series.
At the top of the page you can use the drop-down menu to add both hardware and software to your shopping cart.
Specifications
| Input channels | 16 |
| Maximum Input Voltage | ± 50 V Peak |
| Threshold Precision | ± (3% of threshold setting + 200 mV) |
| Input Dynamic Range | ± 20 V |
| Minimum Input Voltage Swing | 800 mVpp |
| Maximum Input Frequency | 60 MHz |
| Sample Rate | 500 MSa/s |
| Minimum Detectable Pulse Width | 3.3 ns |
| User defined threshold range | ± 10 V in 10 mV steps |
