SPL1016 Hardware
Details

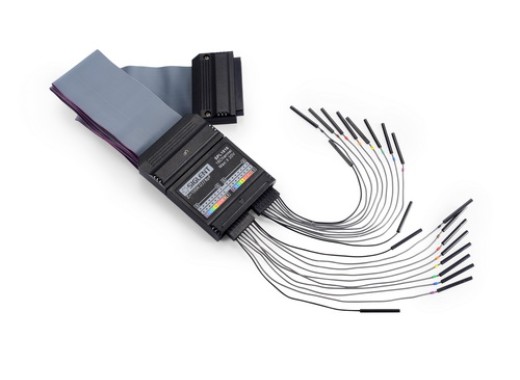

Expansion for the SDS1000X series by Siglent. This bundle of licence code and hardware adds a logic analysis unit to the capable scopes.
Specifications
| Input channels | 16 |
| Maximal Input Voltage | ± 20 V Peak |
| Threshold Accuracy | ± (3% of threshold setting + 150 mV) |
| Input Dynamic Range | ± 10 V |
| Minimum Input Voltage Swing | 800 mVpp |
| Maximum Input Frequency | 60 MHz |
| Sample Rate | 500 MSa/s |
| Minimum Detectable Pulse Width | 8.3 ns |
| User defined threshold range | ± 3 V in 10 mV steps |
Downloads
| Siglent Logic Probe Datasheet |  (259.4 KB) | Download |
