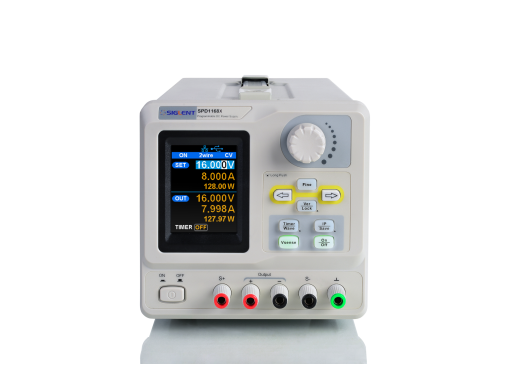

The SPD1168X programmable lab power supply from Siglent has an excellent price quality ratio. The output values can be accurately controlled, since the current and voltage output are respectively displayed in 4 and 5 digits. Furthermore, this device is equipped with automatic active cooling, which is also capable of reducing the noise of the fan, and it is protected against overload and short circuit. This product features a near real-time wave display, which allows a graphical overview of changes in output current and voltage.
The SPD1168X has a unique function, namely the ability to have a 4-wire connection, which creates a separate measuring circuit. By using this separate measurement circuit, the supply can more accurately compensate for any voltage drops due to high resistance connections or long cables. The maximum compensation voltage is 1 V.
The power supply can be programmed via the software Easypower, which supports SCPI commands and LabView.
Power | 128 Watt |
Voltage | 0 - 16 V |
Current | 0 - 8 A |
Resolution | 1 mV / 1 mA |
Channel | 1 |
Ripple | ≤ 350 µVrms & ≤ 3 mArms |
Storage capacity | 5 memory locks |
Screen | 2.8" TFT-LCD display |
Connectivity | USB, LAN |
Dimensions | 155 x 145 x 280 mm |
Weight | 5.5 kg |
The Siglent SPD1168X comes with:
SPD1168X manual |
(1.08 MB) | Download |
SPD1168X datasheet |
(1.43 MB) | Download |
