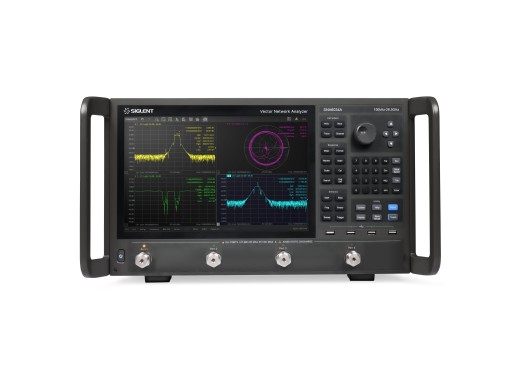

Siglent SNA6034A vector network analyser
Details
The Siglent SNA6034A vector network analyser is part of the SNA6000A series of high-end VNAs.
The SNA6034A has a bandwidth of 100kHz-26.5GHz.
The SNA6034A supports 4-ports scattering, differential, and time-domain parameter measurements.
These can be used to determine the performance of RF-/microwave equipment by calculating the reflection and transmission coefficients.
This series can also be used to determine the Q-factor, bandwidth and insertion loss of a filter.
Furthermore, they feature impedance conversion, movement of measurement plane, limit testing, ripple testing, fixture simulation and adapter removal/insertion adjustment functions.
The SNA6034A has a large 12.1" touchscreen display, on which multiple measurement windows can be displayed simultaneously.
The SNA6034A has a data hold function, and the measurement data from memory can be compared to current data.
It has HDMI/DVI-D video output, allowing for the analyser to be connected to larger displays. Furthermore, the SNA6000A series can also be remotely controlled using a USB or web server connection.
Model overview
| Model | Bandwidth | Ports | Front panel jumper interface | Price |
| SNA6022A | 100 kHz - 13.5 GHz | 2 | No | |
| SNA6024A | 100 kHz - 13.5 GHz | 4 | No | |
| SNA6032A | 100 kHz - 26.5 GHz | 2 | No | |
| SNA6034A | 100 kHz - 26.5 GHz | 4 | No | |
| SNA6122A | 100 kHz - 13.5 GHz | 2 | Yes | |
| SNA6124A | 100 kHz - 13.5 GHz | 4 | Yes | |
| SNA6132A | 100 kHz - 26.5 GHz | 2 | Yes | |
| SNA6134A | 100 kHz - 26.5 GHz | 4 | Yes |
Specifications
| Frequency resolution | 1 Hz |
| Amplitude resolution | 0.05 dB |
| IFBW | 1 Hz - 10 MHz |
| Dynamic range | 135 dB |
| Noise floor | -135 dBm/Hz (typ.) |
| Max. input level | +10 dBm |
| Output power range | –55 dBm - 10 dBm (typ.) |
| Interfaces | LAN, USB Device, USB Host (USB-GPIB) |
| Display | 12.1" touchscreen |
| Dimensions | 426 x 251 x 494.5 mm |
| Weight | 19 kg |
Options
| High-performance reference source upgrade (hardware) | SNA6000-HPR | |
| Spectrum analysis (software) | SNA6000-SA | |
| Time-domain analysis (software) | SNA6000-TDA | |
| Enhanced time-domain analysis (software) | SNA6000-TDR | |
| Material measurement (software) | SNA6000-MT | |
| Pulse measurement (software) | SNA6000-PM | |
| Scalar mixer measurement (software) | SNA6000-SMM |
Accessories
The SNA6034A comes by default with:
- 1x Power cord
- 1x USB cable
- 1x Wireless mouse
- 1x Protective cover
