Siglent SNA6000 enhanced time-domain analysis option

This is a software upgrade for the SNA6000A series. Enables enhanced Time Domain Reflectometer software, to transfer measured frequency responses of a DUT to the time domain. Includes time domain low-pass step and pulse response as well as bandpass response for reflection and transmission. Includes gating and de-embedding.

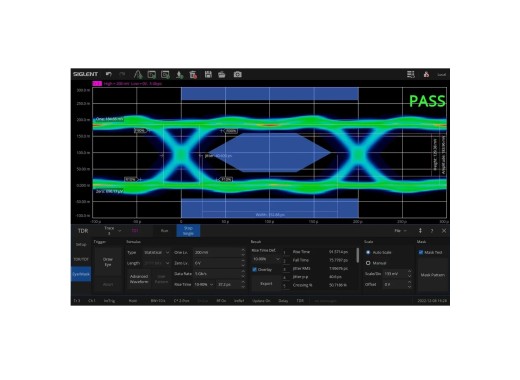

In addition, the TDR software simulates the setup of a traditional time domain reflectometer. The rise time of the step signal and the width of the pulse signal can be set and it supports eye diagram transmission testing, making it superior to the SNA6000-TDA software.
