Siglent SNA5000-TDR license

Software activation license for extra spectrum analyser options of the Siglent SNA5000A series and the SNA5000X-E series vector network analysers.

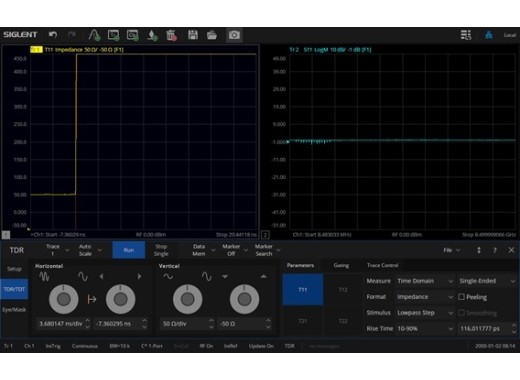

Enables Enhanced Time Domain Reflectometer, to transfer measured frequency responses of a DUT to the time domain.

Includes time domain low-pass step and pulse response as well as bandpass response for reflection and transmission. Includes gating and de-embedding.

In addition, the TDR software simulates the setup of a traditional time domain reflectometer. The rise time of the step signal and the width of the pulse signal can be set and it supports eye diagram transmission testing, making it superior to the SNA5000-TDA software
