689 €689.00 Excl. VAT
Loading stock info
  •
Product number: ELE005552

Be the first to review this product

Details

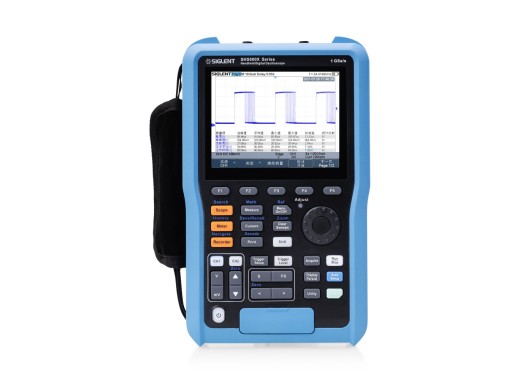

The Siglent SHS-X series, successor to the previous SHS series, are 2-channel handheld oscilloscopes with the great specifications of a stand-alone oscilloscope. The SHS810X is a 100 MHz oscilloscope with a sample rate and memory depth of 1GSa/s and 12Mpts respectively. This series of oscilloscopes is equipped with a 1 million-point FFT mathematical function that provides very high frequency resolution when observing signal spectra. Furthermore, they are also equipped with a single channel 6000 count multimeter. Aditionally, it is possible to connect the oscilloscope to a computer via the USB interfaces and log data to the internal and/or additional external memory. The SDS1000X oscilloscopes in this series feature fully shielded channels.
With its handy design and built-in battery with a 5.5 hour operating time, SHS-X series oscilloscopes are well suited for use on the road. The battery is easily exchangeable and can also be charged externally.

Model overview

The models within the SHS-X series differ in the following specifications:
Model SHS810X SHS820X SHS1102X SHS1202X
Bandwidth 100 MHz 200 MHz 100 MHz 200 MHz
Rise time 1.7 ns 3.5 ns 2.0 ns 3.5 ns
Vertical scale 2 mV/div–100 V/div 2 mV/div–100 V/div 5 mV/div–100 V/div 5 mV/div–100 V/div
Input rating CAT III 300 Vrms, CAT II 600 Vrms CAT III 300 Vrms, CAT II 600 Vrms CAT III 600 Vrms, CAT II 1000 Vrms CAT III 600 Vrms, CAT II 1000 Vrms
Channel Isolation
No
No
Yes
Yes
Price 689 €689.00 Excl. VAT 899 €899.00 Excl. VAT 1399 €1,399.00 Excl. VAT 1699 €1,699.00 Excl. VAT

Specifications

Oscilloscope
Channels 2
Sample rate 1 GSa/s (single channel)
500 MSa/s (dual channel)
Memory depth 12 Mpts (single channel)
6 Mpts (dual channel)
Waveform capture rate 100000 wfm/s, normal mode (400000 wfm/s, sequence mode)
Vertical resolution 8 bits
Serial trigger/decode IIC, SPI, UART, CAN, LIN
Interfaces USB Host/Device
Sample logger
Yes
(specs see datasheet)
Multimeter
Voltage DC: 0.01 mV - 1000 V
AC: 0.01 mV - 750 V
Current DC: 0.01 mA - 10 A
AC: 0.01 mA - 10 A
Resistance 0.1 Ω - 60 MΩ
Capacitance 0.01 nF - 400 uF
Additional functions Diode, Continuity
Display 5.6" TFT LCD (640x480)
Battery (working time) 6900 mA (5.5 Hours)
IP-rating IP51
Dimensions 276x168x68 mm LxWxH
Weight 1750 g

Accessories

The SHS810X comes by default with:

  • USB cable
  • 2x Probe (PP510)
  • Power adapter
  • Battery
  • SCD10A current measurement adapter
  • SCD600MA current measurement adapter
  • Carrying bag

Pros and cons

  • Great specs for handheld oscilloscope
  • Internal multimeter
  • No isolated channels
