Siglent SDS3104X HD oscilloscope
Details

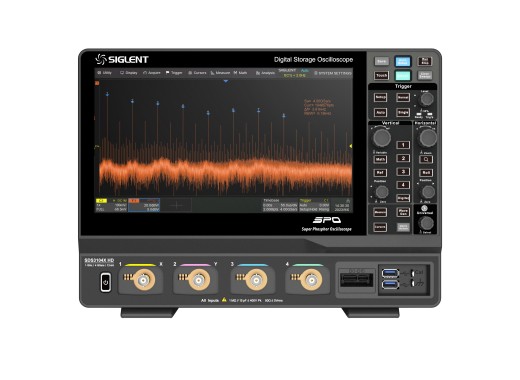

The Siglent SDS3104X HD oscilloscope, belonging to the SDS3000X HD series, offers a wide bandwidth of 1GHz. This model includes 4 analog channels, a 4GSa/s sample rate, and a maximum waveform capture rate of up to 200,000wfms/s in normal mode, complemented by 12-bit ADCs. Additionally, it features a large 10.1" capacitive touchscreen with high resolution, which enhances operational efficiency by allowing users to easily move and scale waveform traces.
By using hardware-based zoom alongside a memory depth of 400Mpts, users can opt for slower timebases without compromising the sample rate. This feature enables quick zooming into areas of interest. The SDS3104X also accommodates an external mouse and keyboard, as well as remote web control via LAN. Noteworthy capabilities of this oscilloscope encompass intelligent trigger, serial bus triggering and decoder, segmented acquisition, history waveform recording, and automatic measurements on over 50 parameters.
Model overview
| Model | SDS3034X HD | SDS3054X HD | SDS3104X HD |
|---|---|---|---|
| Bandwidth | 350 MHz | 500 MHz | 1 GHz |
| Rise time | 830 ps | 610 ps | Interleaving mode： 450 ps
Non-interleaving mode： 570 ps |
| Horizontal scale | 1 ns/div – 1000 s/div | 500 ps/div – 1000s/div | 200 ps/div – 1000s/div |
| Price |
Specifications
| Channels | 4 |
| Memory depth | 400 Mpts (divided bt the number of active channels) |
| Sample rate | 4 GSa (divided by the number of active channels) |
| Waveform capture rate | Normal mode： 200,000 wfm/s Sequence mode： 890,000 wfm/s |
| Vertical resolution | 12 bits Up to 16 bits in ERES mode |
| Vertical scale | 500 µV/div - 10 V/div |
| Interfaces | 2x USB 3.0 Host, 1x USB 2.0 Host, USB 3.0 Device, LAN, External Trigger In, Trigger Out, Aux Out, Pass/Fail |
| Decoding | I2C, SPI, UART, LIN, CAN |
| Display | 10.1” capacitive touch screen (1024 x 600) |
| Dimensions | 317 x 236 x 149 mm |
| Weight | 4.1 kg |
Options
| 50 MHz Waveform generator (software), needs to be used with the SAG1021 | SDS3000HD-FG |
| Isolated USB function/arbitrary waveform generator (hardware) | SAG1021 |
| 16 digital channels (software), needs to be used with the SPL2016 | SDS3000HD-16LA |
| Logic probe, 16-channel, 500MSa/s (hardware) | SPL2016 |
| Deskew fixture for voltage and current probes | DF2001A |
| I2S trigger & decode (software) | SDS3000HD-12S |
| MIL-STD-1553B trigger & decode (software) | SDS3000HD-1553B |
| FlexRay trigger & decode (software) | SDS3000HD-FlexRay |
| CAN FD trigger & decode (software) | SDS3000HD-CANFD |
| SENT trigger & decode (software) | SDS3000HD-SENT |
| Manchester trigger & decode (software) | SDS3000HD-Manch |
| ARINC429 trigger & decode (software) | SDS3000HD-ARINC |
| 350MHz to 500MHz bandwidth upgrade (software) | SDS3000HD-BW3T5 |
| 350MHz to 1GHz bandwidth upgrade (software) | SDS3000HD-BW3TA |
| 500MHz to 1GHz bandwidth upgrade (software) | SDS3000HD-BW5TA |
Accessories
The SDS3104X comes by default with:
- USB cable
- 4x passive probe (500 MHz)
- Wireless mouse
- Power cord
Pros and cons
- 12-bit resolution
- Up to 16-bit in ERES mode
- Bode plots
Downloads
| SDS3000X HD datasheet |
 (2.51 MB) |
Download |
| SDS3000X HD user manual |
(16.06 MB) |
Download |
| SDS3000X HD programming guide |
(9.41 MB) |
Download |
