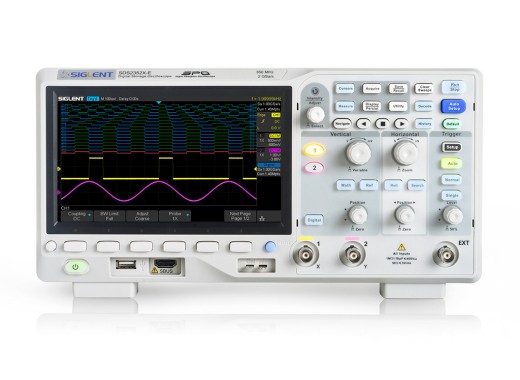

Siglent SDS2352X-E oscilloscope
Details
The Siglent SDS2352X-E oscilloscope is the 350MHz version in Siglent's SDS2000X-E series. The SDS2000X-E is a series of high performance digital phosphorus scopes. at an advantageous price. The 2000X-E has a capture rate of 110,000 wfm/s and a memory of 28 points. The most commonly used functions are easy to operate with the buttons and with the The 7" display makes it easy to read the measured data. The scopes have several automatic measurement functions and various math functions. In addition It is possible to store 80,000 frames that are individually displayed. In combination with this, it is possible to with the minimum dead time irregularities can be removed from the signal.
The 2000X-E applies new SPO technology which makes the scope very signal true. and ensure low noise. Furthermore, the 2000X-E series has a minimum vertical input range of 500μV and the scopes have an innovative high-sensitivity and high-sensitivity digital trigger system. low jitter. In addition to the 110,000 wfm/s capture rate, the scope can also capture 400,000 wfm/s. This means that the scope can also capture 400,000 wfm/s. bigger block and analyzes it afterwards, instead of at the same time. This can be advantageous for the debugging signals.
The scopes in this series offer normal 256-level intensity grading as well as a color temperature indication to show how often values appear in a signal. Furthermore, this series supports multiple powerful trigger modes, including the triggering and decoding of serial buses. Also included is a 1M-samples FFT function, search and navigation function and an on-screen Bode plot function.
Models
The models within the 2000X-E series only differ in bandwidth.
| Model | SDS2202X-E | SDS2352X-E |
|---|---|---|
| Analog bandwidth | 200 MHz | 350 MHz |
| Price (2 channels) |
Specifications
| Memory | 28 Mpts |
| Sample rate (1 channel active) | 2GS/s |
| Sample rate (2 channels active) | 1GS/s |
| Display | 7" TFT, 800x480 pixels |
| Input impedance | 1 MΩ |
| Rise Time | ≤ 1 ns |
| Horizontal scale | 500 ps/div - 100 s/div |
| Vertical sensitivity | 500 μV/div - 10 V/div |
| A/D converter | 8 bits resolution |
| Trigger Types | Edge, Slope, Pulse width, Window, Run, Interval, Dropout, Pattern, Video |
| Decoding Type | I2C, SPI, UART, CAN, LIN |
| Waveform capture rate (max) | 110,000 wfm/s (normal) 400,000 wfm/s (sequence mode) |
| Probe support | 0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X.....1000X, 2000X, 5000X, 10000X, Custom |
| Number of channels | 2 |
| Connections | USB Host, USB Device (USB -TMC), LAN, Pass / Fail, Trigger Out |
| Weight (without box) | 2.6 kg |
| Dimensions | 312 x 132.6 x 151 (LxWxH) |
Accessories
All oscilloscopes from the SDS2000X-E series are supplied including:
- Passive probes (1 per channel): 1x / 10x
- USB cable
- Power cord
- User manual
- Calibration certificate
Options
| 25 MHz function generator | This function generator option is externally connected to the scope and can generate 25 MHz signals and has a channel. Signals can be 16 kpts long. The sample rate is 125 MHz. | |
| 16 channel logic analyzer | This 16 channel logic analyzer makes it possible to analyze digital signals. The specifications of this product can be found on the page on the right. | |
| Siglent Isolated Front End module | Do you want to do measurements on the 230V AC grid or three-phase electrical signals? Then you need the Siglent Isolated Front End module! This module isolates your oscilloscope from high voltages up to 600V peak-peak and has a bandwidth of 1MHz. | |
| WiFi | This option makes it possible to provide the SDS2000X-E oscilloscopes with WiFi. This option consists of a software license to activate WiFi on the oscilloscope and a USB dongle. |
Downloads
| Siglent SDS2000X-E series datasheet |  (2.24 MB) | Download |
| DSO programming guide | (2.53 MB) | Download |
