Siglent SDS2104
Details

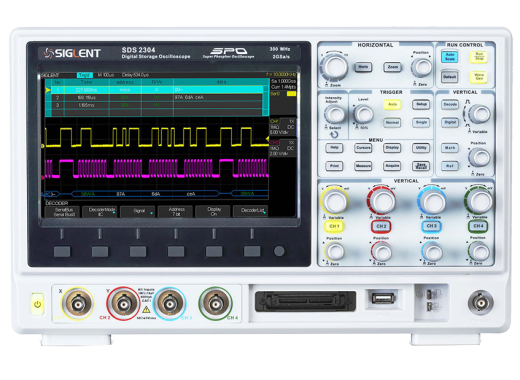

Scopes in the Siglent SDS2000 series are advanced 2 or 4 channel scopes for the demanding user. The high performance scopes feature an 8" LCD screen, a high sample rate of 2 Gigasample per second and a huge memory of 28Mpts. With the capture rate of up to 110,000 waveforms per second, signals can be analysed quickly with this scope.
The scopes can be connected to a computer using USB and measurement data can be saved to a USB memory stick. This can be done both as a screen shot and as data.
Optionally a 8 channel logic analyser, a function generator, and a protocol decoding option can be ordered to expand the capabilities of the scopes.
Models
Models ending in a 2 are 2 channel scopes, the ones ending in 4 are 4 channel models. The other differences between the scopes are in bandwidth.
| Model | SDS2072/ SDS2074 | SDS2102/ SDS2104 | SDS2202/ SDS2204 | SDS2302/ SDS2304 |
|---|---|---|---|---|
| Channels | 2/4 | 2/4 | 2/4 | 2/4 |
| Analogue bandwidth | 70 MHz | 100 MHz | 200 MHz | 300 MHz |
Specifications SDS2104
This model is a 4-channel 100 MHz scope.
| Memory (total) | 28 Mpts |
| Channels | 4 | Sample rate (4 channels active) |
1 GS/s |
| Display | 8" TFT, 800x480 pixels |
| Input impedance | 1 MΩ |
| Rise Time | ≤3.5 ns |
| Horizontal scale | 1 ns/div - 50s/div |
| Vertical sensitivity | 2 mV/div - 10 V/div |
| A/D converter | 8 bits resolution |
| Maximal voltage | 400V (piek - piek) |
| Waveform capture rate | tot 110,000 wfm/s |
| Probe support | 1x, 10x, 50x, 100x, 500x, 1000x |
| Connectivity | USB 2.0 type A, USB 2.0 type B, LAN, Pass/Fail trigger |
| Weight (without box) | 3.6 Kg |
| Dimensions | 352 x 112 x 224 mm (LxBxH) |
For more info the data sheet and the manual can be downloaded.
Accessories
The SDS2104 scopes come bundled with:
- 4 passive probes: 1x / 10x
- USB cable
- Power cord
- Manual
- EasyScopeX Software (Windows XP, Vista, 7)
Options
There are 4 possible options that can be ordered to increase the capabilities of the scopes. These options can be added to the cart by going to the product pages and pressing the order button. More than one option can be ordered.
Options:
