Siglent SDS1102-CML
Details

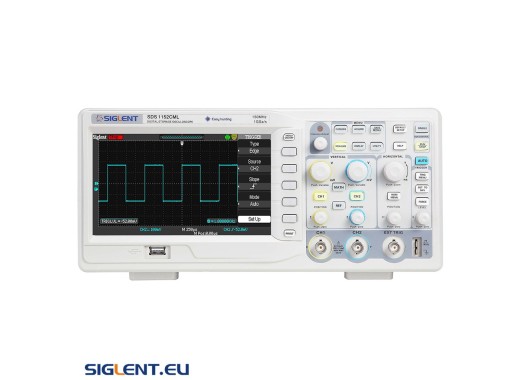

The Siglent SDS1000-CML series are affordable 2-channel oscilloscopes with an LCD display of 7”. These oscilloscopes feature a 2 Megapoints memory and a sample rate up to 1 Gigasample per second. This large memory enables the user to see more details when observing long signals. The front panel is designed for efficient usage.
These oscilloscopes can be connected to a PC via USB directly, or data can be saved on a memory stick. This can be done both as a screenshot and as binary data.
Models
The models in the SDS1000-CML series differ mainly in their bandwidth and the maximal sample rate. The key specifications are displayed conveniently in the table below.
| Model | SDS1072CML | SDS1102CML | SDS1152CML |
|---|---|---|---|
| Number of channels | 2 | 2 | 2 |
| Analog bandwidth | 70 MHz | 100 MHz | 150 MHz |
| Memory size | 2 Mpts | 2 Mpts | 2 Mpts |
| Sample rate (1 channel active) | 1 GS/s* | 1 GS/s* | 1 GS/s* |
| Sample rate (2 channels active) | 500 MS/s* | 500 MS/s* | 500 MS/s* |
In the upper right corner, next to the image of the oscilloscope you can select the preferred model from the drop down menu.
Specifications
| Memory size | 2 MB/ 2 Mpts |
| Display | 7" TFT, 480*234 pixels |
| Input impedance | 1 MΩ |
| Rise Time | SDS1072CML: ≤5 ns SDS1102CML: ≤3.5 ns SDS1152CML: ≤2.3 ns |
| Horizontal scale | SDS1072CML: 5 ns/div - 50s/div SDS11x2CML: 2.5 ns/div - 50 s/div |
| Vertical sensitivity | 2 mV/div - 10 V/div |
| A/D convertor | 8 bit resolution |
| Maximal voltage | 400V (peak to peak) |
| Probe support | 1x, 10x, 50x, 100x, 500x, 1000x |
| Number of channels | 2 |
| Connections | USB 2.0 type A, USB 2.0 type B, RS232, Pass/Fail trigger |
| Weight (Without box) | 2.5 Kg |
| Dimensions | 323 x 136 x 157 mm (LxWxH) |
For more information check the datasheet of this product
Accessories
All oscilloscopes in the SDS1000CML series come bundeled with:
- 2 passive probes: 1x / 10x
- USB cable
- Power cord
- Manual (English)
- CD with Software (Windows XP, Vista, 7)
Optionally, you can order a carrying bag to transport and store your oscilloscope in.
