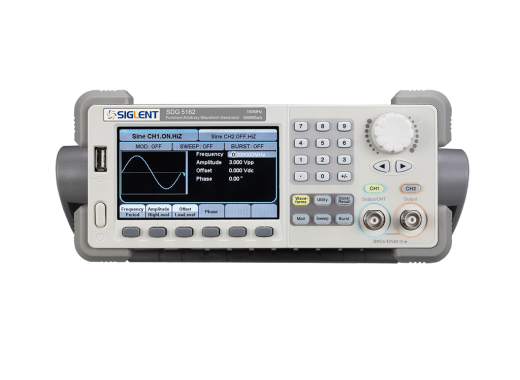

Siglent SDG5082 function generator
Details
The Siglent SDG5082 has a bandwidth of 80 MHz.
The 2-channel function generators in the SDG5000 series feature a 4.3” LCD display and have high-frequency stability with a mere 2ppm deviation. The most frequently used modulation functions are preinstalled on the device, and with the supplied PC software you can write advanced functions with up to 512 thousand points. The function generator has storage with room for 8 functions of 512k points or 24 functions of 16k points, which allows you to quickly recall and use the functions needed.
Models
The models in the SDG5000 series differ mainly in their bandwidth. The key specifications are displayed conveniently in the table below.
| Model | SDG5082 | SDG5122 | SDSG5162 |
|---|---|---|---|
| Maximal output frequency | 80 MHz | 120 MHz | 160 MHz |
| Arbitrary waveform length | 512kpts | 512kpts | 512kpts |
| Sample rate | 500 MS/s | 500 MS/s | 500 MS/s |
| Price |
Specifications
| Vertical resolution | 14 bits |
| Display | 4,3" TFT, 480x272 pixels |
| Built in functions | o.a. Sine, Square, Ramp, Pulse, Noise, Arbitrary, DC Check the datasheet for other present functions. |
| Output impedance | 50 Ω |
| Frequency range | 1 μHz -80 MHz |
| Amplitude range | 1 mVpp - 10 Vpp (50 Ω, < 40MHz) 1 mVpp - 5 Vpp (50 Ω, < 80MHz) |
| Number of channels | 2 |
| Connections | USB 2.0 type B |
| Weight (without box) | 2.8 Kg |
| Dimensions | 261 x 105 x 344mm (BxWxL) |
For more information see the datasheet of the product for a more detailed overview of the specifications.
