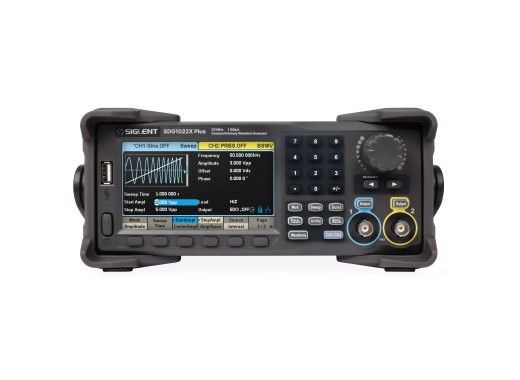

The Siglent SDG1022X Plus function generator has a bandwidth of 25MHz.
The new SDG1000X Plus series dual-channel function/arbitrary waveform generators offer a high bandwidth and broad amplitude ranges. The vertical resolution and EasyPulse technique offer high accuracy in the output wave. The SDG1022X Plus has a sample rate of 1GSa/s, a wavelength of 8Mpts per channel and a vertical resolution of 16 bits allowing it to generate low-jitter, high-fidelity waveforms with high frequencies. The SDG1000X series also features a built-in web interface allowing you to control instruments through a browser.
The EasyPulse technology offers a solution for a problem common in DDS generators when generating square waves. If the frequency of the signal is not an integer multiple of the clock frequency a jitter occurs in the signal, resulting in an impure signal. EasyPulse solves this problem by eliminating the jitter. The generators support both sinusoidal and square wave signals up to the bandwidth, which is not common in function generators. The SDG1000X Plus function generators are also equipped with TrueArb technology.
| TrueArb |
With TrueArb, the function generator generates a signal point by point. This allows each data point to be treated individually, reducing the jitter and error rate. This provides a very good representation of the stored waveform. |
 |
Model overview
Specifications
| Channels | 2 |
| Vertical resolution | 16 bits |
| Sample rate | 1 GSa/s (4X Interpolation) |
| Frequency resolution | 1 μHz |
| Maximum amplitude | 20 Vpp |
| Waveform length | 8 Mpts / CH |
| Modulation | AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM |
| Built-in functions | Sine, Square, Pulse, Ramp, Noise, Harmonic, Sweep, Burst, DC |
| Output impedance | 50 Ω |
| Interfaces | USB host/device, LAN |
| Display | 4.3" LCD (480x272) |
| Dimensions | 260.3 x 107.2 x 295.7 mm |
| Weight | 3.48 kg |
Options
| SPA1010 power amplifier 10W |
Power amplifier for SIGLENT function/arbitrary waveform generators.
| |
| USB to GPIB |
With this option, you can can control the function generator through GPIB.
| |
