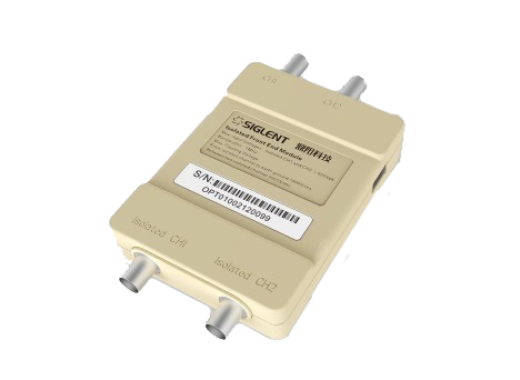

Siglent Isolated Front End module
Details
With the Siglent isolation module you can protect your scope from high voltages. The module is capable of handling inputs up to ±600 V peak, has a 1 MHz bandwidth and has an isolation rating of 1000 V rms from channel to ground. This module is well suited for measurements of standard 230V AC or three fase systems.
The module is suitable for the whole range of Siglent scopes.
Powered using the USB, it uses less than 1W and attenuates the signal 200:1.
Although this is a Siglent probe, it can be used on most oscilloscopes of other brands.
On many Siglent oscilloscopes it cannot be powered by the USB ports on the scope, because these ports don't supply the required 200mA for this probe. You can power this probe with an USB 5V adapter.
Specifications
| Maximum input voltage | ±600 Vpk |
| Bandwidth | 1 MHz |
| Input impedance | 10 MΩ |
| Output voltage | 3V pk-pk |
| Power supply | 5V USB, <1 Watt |
| Channel to channel isolation | 2000V RMS |
| Channel to ground isolation | 1000V RMS |
The manual of the isolation module can be found below.
