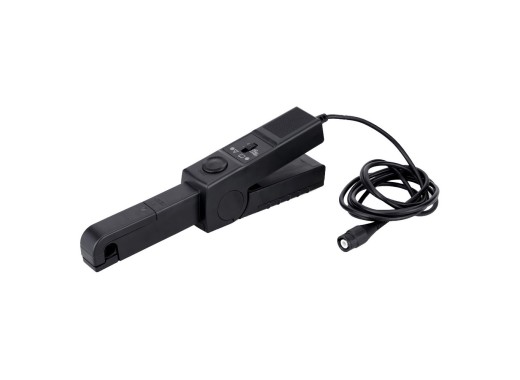

Siglent CP4020 current probe
Details
The Siglent CP4020 is an affordable AC/DC active current clamp probe with a DC to 200kHz bandwidth. This probe can safely measure a maximum continuous current of 20Arms and a maximum peak current of 60A. The CP4020 features a BNC connector, which allows for a wide compatibility with most oscilloscopes. With the addition of a BNC to banana adapter, the probe can also be used with other measuring instruments, such as a multimeter. Lastly, the CP4020 can be powered by a 9V battery or the included DC power supply, making it ideal for indoor or field applications.
Model overview
| Models | CP4020 | CP4050 | CP4070 | CP4070A |
|---|---|---|---|---|
| Bandwidth | DC - 200 kHz | DC - 1 MHz | DC - 300 kHz | DC - 300 kHz |
| Rise time | ≤ 1.75 µs | ≤ 0.35 µs | ≤ 1.2 µs | ≤ 1.2 µs |
| Peak current | 60 A | 140 A | 200 A | 200 A |
| Maximum continuous input range | 20 Arms | 50 Arms | 70 Arms | 70 Arms |
| Range switch | 50 mV / A 5 mV / A | 500 mV / A 50 mV / A | 50 mV / A 5 mV / A | 100 mV / A 10 mV / A |
| Price |
Specifications
| DC accuracy | ±2% |
| Conductor size | 10.3mm |
| Dimensions | 231 x 67 x 36 mm |
| Weight | 310 g |
Accessories
The CP4020 comes with:
- Power adapter
- 200 cm BNC cable
Pros and cons
- Can powered with a battery
Downloads
| Siglent Current probes datasheet |  (684.78 KB) | Download |
| Siglent CP4000 user manual | (1.56 MB) | Download |
