Siglent 100Base-TX & 1000Base-T compliance test fixture
- Eleshop
- Test & measure
- Oscilloscopes
- Accessories
- Siglent 100Base-TX & 1000Base-T compliance test fixture
Details

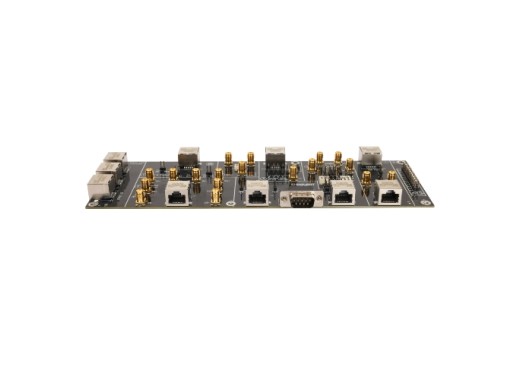

FX-ETH kit is the Ethernet electrical compliance test fixture for 100 BASE-TX and 1000 BASE-T Ethernet compliance validation on the Siglent SDS7000A series of oscilloscopes.
Contents
The test fixture comes with:
- 1x Test Fixture Board
- 1x UTP RJ45 Cable (6")
- 8x 50Ω Terminators (SMA)
- 4x SMA cables
- 4x BNC-to-SMA Adaptors
- 12x Jumpers
Downloads
| Siglent FX-ETH user manual |  (6.59 MB) | Download |
-
