47.89 €47.89 Excl. VAT
Loading stock info
  •
Product number: ELE004617

Be the first to review this product

Details

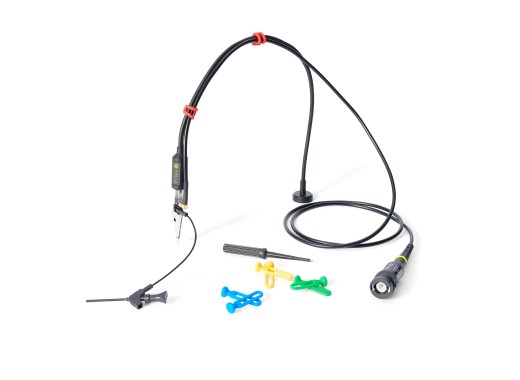

This Sensepeek (4014) SP200 is a 200 MHz oscilloscope probe. This probe is a revolutionary way to test and measure PCBs hands-free. There is no more need for fidgeting around trying to find the optimum spot to place your probe with its magnetic bottom. This probe does not only save time during testing and repairs but with its minimalistic design and spring-loaded test needle, it can measure signals on fine pitch components and other places that are hard to reach for conventional probes. Unfortunately, these probes only have one attenuation ratio of 10:1.

For a similar oscilloscope probe with less bandwidth, you can look at the Sensepeek SP100. For extra probe tips you can look at the Sensepeek 4009. And for extra probe cable accessories you can look at the Sensepeek 4010.

Specifications

The specifications for the SP200 probes are listed in the table below.

Bandwidth200 MHz
Rise time1.75 ns
Attenuation10:1
Input impedance 10 MΩ
Input capacitance14 - 18 pF
Max. input voltage±60 V(DC) / 30 V(AC RMS)
Cable length80 cm
Probe tip diameter0.5 mm

Accessories

The Sensepeek 4014 comes with:

  • 1 x SP200 - 200 MHz handsfree oscilloscope probe
  • 1 x Test hook with detachable cable for ground connection
  • 2 x Ground cables (5 cm & 10 cm)
  • 1 x Set of colour coded cable holders(4 colours)
  • 1 x Extra test needle

Pros and cons

  • Flexible with a magnetic base
  • Removable probe tips
