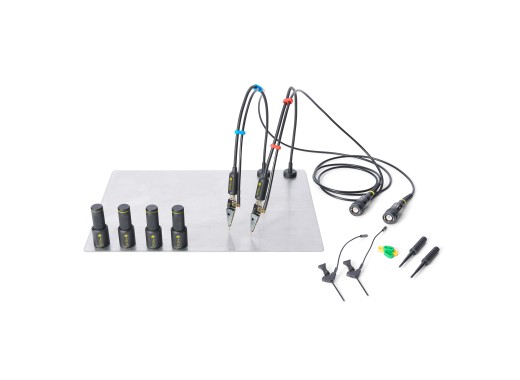

Sensepeek 4016 PCBite oscilloscope kit with 2x SP200 probes

The Sensepeek (4016) PCBite oscilloscope kit with 2x SP200 probes, is a revolutionary way to test and measure PCBs hands-free. There is no more need for fidgeting around trying to find the optimum spot to place your probe with the magnetic Sensepeek SP200 - 200 MHz probes. This kit not only saves time during testing and repairs but with its minimalistic design and spring-loaded test needle, it can measure signals on fine pitch components and other places that are hard to reach for conventional probes. Unfortunately, these probes only have one attenuation ratio of 10:1.

If you want to order extra Sensepeek 200 MHz probes or a Sensepeek PCBite insulation cover for this kit, you can do so by following the links. It is also possible to order 100 MHz probes instead of 200 MHz ones.

Specifications

The specifications for the SP200 probes are listed in the table below.

Accessories

The Sensepeek PCBite oscilloscope kit comes with:

• 4 x PCBite holder
• 1 x Large base plate (A4)
• 2 x SP200 - 200 MHz handsfree oscilloscope probes
• 1 x Test hook with detachable cable for ground connection
• 1 x Set of colour coded cable holders(4 colours)
• 1 x Set of yellow insulation washers
• 1 x Micro fibre cloth

Downloads

Sensepeek PCBite manual	(489.54 KB)	Download
Sensepeek SP200 manual	(608.2 KB)	Download
