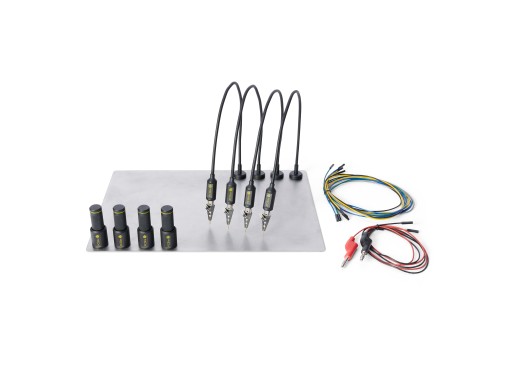

Sensepeek 7028 PCBite kit with 4x SP10 probes and test wires

Note: that the product will be pre-fitted with the insulation cover, unlike what is shown in the images.

The Sensepeek 7028 is a complete PCBite kit ideal for consumers who work with PCBs and other small electronic circuits. The kit contains four passive and hands-free 10MHz SP10 probes with test wires to connect to various tools. The kit also comes with a large, magnetic base plate that allows for the probes to be easily removed and positioned on the base. The probes are suitable for signal measurements and for logic analysers that interact with high-speed serial communication interfaces such as SPI, CAN, USB, JTAG, I2C, and UART. They can also be used for conventional resistance and voltage measurements. Moreover, the SP10 probes feature a very fine probe tip that allows precise measurement of small components. Keep in mind that these probes only have one attenuation ratio of 1:1.

The kit also comes with four PCBite holders that ensure that the circuits remain stationary while the probe measures the desired signal. All of this can be done hands-free.

Specifications

The specifications for the SP10 probes are listed in the table below.

Accessories

This Sensepeek kit comes with:

• 4 x PCBite holder
• 1 x Large insulated base plate (A4)
• 4 x SP10 probes
• 4 x Extra test needles
• 1 x Set of yellow insulation washers
• 5 x Dupont to dupont test wires
• 2 x Banana to dupont test wires
• 1 x Micro fibre cloth

Downloads

Sensepeek PCBite manual	(489.54 KB)	Download
Sensepeek SP10 manual	(709.34 KB)	Download
