Siglent SDS6058L digital storage oscilloscope
Details
The SDS6058L is part of the Siglent SDS6000L series of digital storage oscilloscopes, which all feature a very low space-saving profile. The product features a 256-level intensity grading display function as well as a color temperature display mode, all available via the HDMI port. It has over 50 measurement and math parameters and features a highly sensitive digital trigger with low jitter.
The oscilloscope supports serial bus triggering, history waveform recording, search and navigate functions, mask testing, and power/eye/jitter analysis, some via additional software (see the options table below). The 25MHz function generator with built-in multiple predefined waveforms is also optional. Waveform records up to 500Mpts can be captured, stored and analysed, with a waveform capture rate of up to 170,000wfm/s in normal mode (and up to 750,000wfm/s in sequence mode).
The product can be remotely controlled via LAN with the built-in web server or with a complete SCPI command set. Please see the options for all the available software.

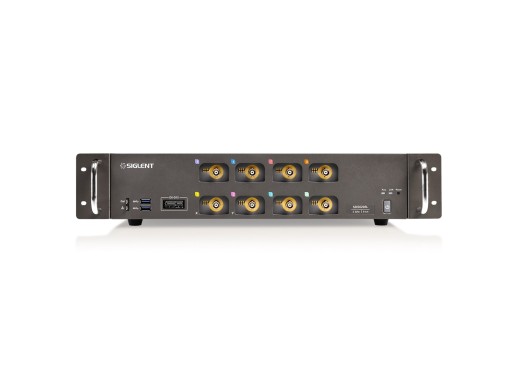

Please note, the images are of the SDS6208L model. Other 8CH models have a similar layout.
Model overview
The products in the SDS6000L series differ mainly in bandwidth, channels and horizontal scale.| Model | Bandwidth | Channels | Horizontal scale | Price |
|---|---|---|---|---|
| SDS6054L | 500 MHz | 4 | 0.5 ns/div - 1000 s/div | |
| SDS6058L | 500 MHz | 8 | 0.5 ns/div - 1000 s/div | |
| SDS6104L | 1 GHz | 4 | 0.2 ns/div- 1000 s/div | |
| SDS6108L | 1 GHz | 8 | 0.2 ns/div- 1000 s/div | |
| SDS6204L | 2 GHz | 4 | 0.1 ns/div - 1000 s/div | |
| SDS6208L | 2 GHz | 8 | 0.1 ns/div - 1000 s/div |
Specifications
| Memory depth | 500 Mpts (divided by number of active channels) |
| Sample rate | 5 GS/s (divided by number of active channels) |
| Waveform capture rate | 170,000 wfm/s |
| Vertical resolution | 8 bits |
| Vertical scale | 1 MΩ: 0.5 mV/div - 10 V/div 50 Ω: 0.5 mV/div - 1 V/div |
| Interfaces | 4x USB (host/device), 1000M LAN, micro SD card, Pass/Fail, Trigger Out, HDMI, 10MHz in/out |
| Decoding | Included: I2C, SPI, UART, CAN, LIN Optional: CAN FD,FlexRay, I2S, MIL-STD-1553B, SENT, Manchester |
| Dimensions | 395 x 43 x 414 mm |
| Weight | 6.1 kg |
Options
These software options for the SDS6000L series oscilloscopes are available, additional hardware options can be found on the datasheet. You can contact us for more information.| Function generator (software) | SDS6000L-FG |
| Power analysis (software) | SDS6000L-PA |
| Eye diagram/Jitter analysis (software) | SDS6000L-EJ |
| I2S trigger & decode (software) | SDS6000L-I2S |
| MIL-STD-1553B trigger & decode (software) | SDS6000L-1553B |
| FlexRay trigger & decode (software) | SDS6000L-FlexRay |
| CAN FD trigger & decode (software) | SDS6000L-CANFD |
| SENT trigger & decode (software) | SDS6000L-SENT |
| Manchester decode (software) | SDS6000L-Manch |
Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
Accessories
Each model in the SDS6000L series comes by default with:
- 500 MHz passive probes (1 per channel)
- Wireless mouse
- USB cable
- Power cord
- Certificate of calibration
Pros and cons
- Very low space-saving profile
- Low vertical resolution
Downloads
| Siglent SDS6000L series datasheet |  (1.95 MB) | Download |
| Siglent SDS6000L series user manual | (14.66 MB) | Download |
