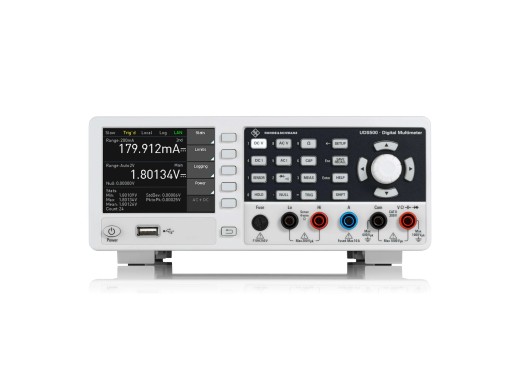

Rohde & Schwarz UDS500 multimeter
Details
The Rohde & Schwarz UDS500 is a 5½-digit True-RMS digital multimeter, part of the UDS series. This multimeter features a high, hassle-free accuracy with a basic DC accuracy of 0.015%, up to 100kHz frequency range and a 3.5” display with three measurement readouts, for confidence in your measurements. Furthermore, the UDS series offers excellent compatibility with SCPI commands for remote control, as well as USB/LAN, along with long-term data logging capabilities.
The R&S UDS multimeter series replaces the popular R&S HMC8012 and is completely code compatible, meaning any code which worked for the HMC8012 will also work with the UDS series.
The device is capable of performing DCV, DCI, True-RMS, ACV and ACI, frequency, two-wire and four-wire resistance, capacitance, continuity test, diode test, temperature, and power measurements. Finally, the UDS500 has industry-standard compliant DMM safety measures, integrated protection functions and automatic shutdown if the internal shunt is overloaded, such that your equipment is safe.
Model overview
| Model | UDS500 | UDS500-G | UDS600 | UDS600-G |
|---|---|---|---|---|
| Display resolution | 200,000 counts, 5 ½ digits | 200,000 counts, 5 ½ digits | 2,000,000 counts, 6 ½ digits | 2,000,000 counts, 6 ½ digits |
| DC accuracy | 0.015% | 0.015% | 0.0075% | 0.0075% |
| GPIB interface | No
| Yes
| No
| Yes
|
| Price |
Specifications
| Max. AC voltage | 750 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A |
| Max. DC current | 10 A |
| Max. resistance | 250 MΩ |
| Max. capacitance | 500 μF |
| Frequency | 0 Hz - 100 kHz |
| Temperature | -200 - 600 ℃ |
| Other functions | DCV, DCI, ACV/ACI, frequency, 2/4-wire resistance, capacitance, continuity, diode test, temperature, power |
| True-RMS | Yes |
| Data logging | Yes |
| Display | QVGA 3.5" |
| Connectivity | LAN, USB |
| Dimensions | 222 x 97 x 291 mm |
| Weight | 2.7 kg |
Accessories
- 1 metre silicon test leads
- Set of power cables
- Declaration of traceable calibration
Pros and cons
- High accuracy
- High frequency range
- Data-logging
Downloads
| R&S UDS datasheet |  (2.92 MB) | Download |
