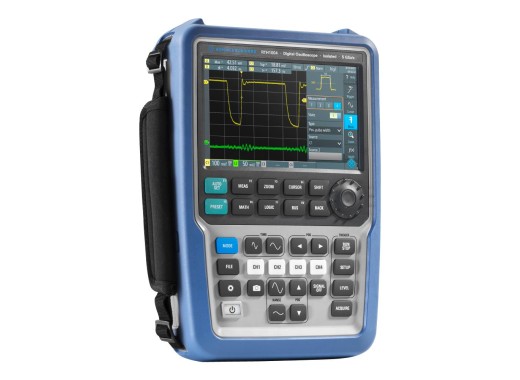

Rohde & Schwarz RTH1K-COM4 promotion
Details
Full Package promotion! When you order this oscilloscope, you will receive the Full Package instead of just the oscilloscope at no extra cost. Read on for more information. This promotion is valid as long as the stock lasts.
The Rohde & Schwarz RTH1K-COM4 is a 4-channel premium handheld oscilloscope with a bandwidth of no less than 500 MHz. The RTH1004 has a digital trigger system, which has the best trigger sensitivity for a handheld oscilloscope. Furthermore, there are 37 automatic measurement functions available, making the RTH1K-CON4 offer the same capabilities as a laboratory oscilloscope. The oscilloscope complies with the CAT IV 600 V safety standards.
R&S Full Package RTH1K-COM4
The Rohde & Schwarz RTH1K-COM4 Promotion gives users more than just an oscilloscope. The Full Package RTH1004 is delivered including:
- 4x RT-ZI10 probes (500 MHz)
- RTH-B244 bandwidth upgrade to 500 MHz
- RTH-B1 MSO upgrade (250 MHz, 8 digital channels)
- RTH-PK1 option bundle.
The RTH-PK1 bundle consists of a.o. CAN/LIN, I2C/SPI, UART/RS232, CAN-FD, SENT Serial decoding and triggering, Spectral and Harmonic analysis, advanced triggering, frequency counter, History and Segmented memory and a web interface.
Specifications
| Maximum sample rate | 5 GSa/s |
| Maximum memory depth | 50 Mpts |
| Bandwidth | 500 MHz |
| Waveforms capture speed | 50000 wfms/s |
| Vertical resolution | 10 bits |
| Trigger types | Edge, Glitch, Width, Tv/Video, Pattern, State, Runt, Slew rate, Window, Data2clock, Serial pattern, Timeout, Interval, Protocol |
| Waveform math | Adding, subtracting, multiplying, dividing, squaring, absolute value, inverse |
| Vertical scale | 2 mV/div - 100 V/div |
| Horizontal scale | 1 ns/div ~ 500 s/div |
| Display | Touchscreen 7.0" TFT 800 x 480 color |
| Connectivity | USB, LAN, webserver |
| Safety standard | CAT IV 600 V and CAT III 1000 V |
| Dimensions | 201 x 293 x 74 mmm |
| Total weight | 2.4 kg |
For more information on the specifications, please see the datasheet.
Software, firmware and drivers
The software, firmware and drivers of the oscilloscopes can be found at the manufacturer's website to the right.
Accessories
The Rohde&Schwarz RTH1K-COM4 set is delivered including:
- Power cord
- 4x passive 500 MHz probes (RT-ZI10)
- lithium-ion battery pack
- 4 GB microSD card (already pre-installed)
- RTH-B244 bandwidth upgrade
- RTH-B1 MSO upgrade (including 8 digital probes)
- RTH-K1 I2C/SPI triggering and decoding
- RTH-K2 UART/RS-232 triggering and decoding
- RTH-K3 CAN/LIN triggering and decoding
- RTH-K9 CAN-FD triggering and decoding
- RTH-K10 SENT triggering and decoding
- RTH-K15 History and segmented memory
- RTH-K18 Spectral analysis
- RTH-K19 Advanced triggering
- RTH-K33 Frequency counter
- RTH-K34 Harmonic analysis
- RTH-K201 Web interface
Pros and cons
- Temporary promotion!
- 10 bit ADC
- High bandwidth of 500 MHz
- Extensive upgrade
