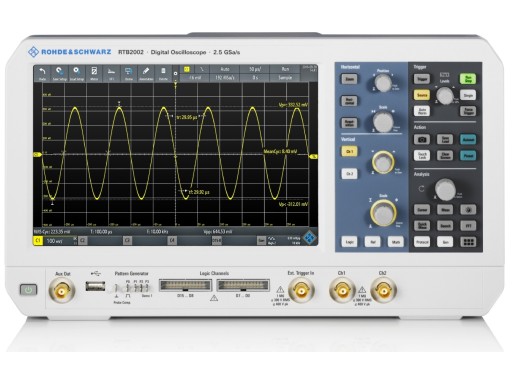

Rohde & Schwarz RTB2002 oscilloscope
Details
The Rohde & Schwarz RTB2000 series of digital oscilloscopes are revolutionary in this price category, due to the very large 10.1” display with 1280x800 pixels. Furthermore, these oscilloscopes are equipped with a capacitive touch screen, which works the same as a smartphone screen. Other key aspects of the RTB2000 series are the sensitivity of 1mV/div, a maximum sample rate of 2.5GSa/s and a maximum memory depth of 20mpts. These oscilloscopes also have a 10-bit A/D converter, resulting in a fourfold improvement in signal reproduction compared to the 8-bit A/D converters that are standard in similar oscilloscopes.
By default, these oscilloscopes have a bandwidth of 70MHz, which you can further expand to 100, 200 or 300MHz. Please refer to the bandwidth upgrades below for more info on these expansions. Other options can be viewed at the bottom of the options page.
Please note. There is a RTB2002EDU version of this product meant for educational institutions and students with verification.
Model overview
| Model | RTB2002 | RTB2004 |
| Channels | 2 | 4 |
| Price |
Specifications
| Range | 70 MHz with options up to 100, 200 and 300 MHz |
| Maximum sampling rate | 2.5 GSa/s |
| Maximum memory depth | 20 MPts |
| Waveform capture rate | 50,000 wfms/s |
| Vertical scale | 1 mV/div - 10 V/div |
| Vertical bits | 10 |
| Horizontal scale | 1 ns/div ~ 500 s/div |
| Trigger types | Edge, Width, Pattern, Video, Time-out, Line |
| Waveform maths functions | Over 20 different functionalities |
| Display | 10.1" WXGA display with capacitive touch |
| Display resolution | 1280 x 800 pixels (WXGA) |
| Connectivity | USB (type A), LAN/Ethernet (RJ45) and USB (type B) |
| Dimensions | 390 x 220 x 152 mm |
| Weight | 2.5 kg |
Software, firmware and drivers
The software, firmware and drivers of the oscilloscopes can be found on the manufacturer's website.
Accessories
The Rohde & Schwarz RTB2002 oscilloscope comes with:
- Power cord
- User manual
- 2x Rohde & Schwarz RT-ZP03 passive probes (1 per channel)
Bandwidth upgrades
There are 3 options to expand the bandwidth. By clicking on the code of an option you will be redirected to a page where you can order the upgrade.
| Model | RTB2002 | RTB2004 |
| 100 MHz | RTB-B221 | RTB-B241 |
| 200 MHz | RTB-B222 | RTB-B242 |
| 300 MHz | RTB-B223 | RTB-B243 |
Options
Additional optional software functions are available for these oscilloscopes. A number of these are listed in the table below. By clicking on the code of the options you will be redirected to the page where you can add these options to your shopping cart. If you need other software functions, please contact us.
| RTB-K1 | This option enables the I2C and SPI trigger and decoding functionalities. |
| RTB-K2 | This option enables the UART/RS-232/RS-422/RS485 trigger and decoding functionalities |
| RTB-K3 | This option provides the CAN/LIN trigger and decoding functionalities. |
| RTB-K15 | This option allows the user to view the user history. Furthermore, the memory of the oscilloscopes can be segmented, so that the waveform capture rate comes up to 100,000 waveforms/s. |
| RTB-K36 | With this option you enable your RTB2000 oscilloscope to make bodeplots up to 25 MHz. |
| RTB-B6 | This option allows the software to use the (built-in) ARB generator. |
| RTB-Z1 | This is the front cover for the oscilloscopes. |
| RTB-Z3 | This is a carrier bag for the oscilloscopes, making it easier and more convenient to carry. |
Downloads
| RTB2000 series brochure |  (9.01 MB) | Download |
| RTB2000 series datasheet | (1.42 MB) | Download |
| RTB2000 series programming manual | (530.97 KB) | Download |
| RTB2000 series operating instructions | (4.82 MB) | Download |
| RTB2 series user manual | (13.6 MB) | Download |
