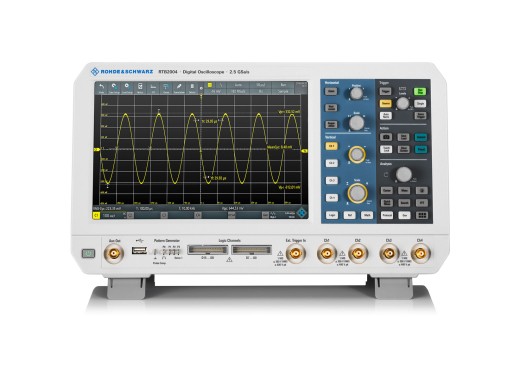

Rohde & Schwarz RTB-BNDL promotion
Details
Rohde & Schwarz RTB-BNDL is a premium 4-channel oscilloscope with 300 MHz bandwidth. It has the largest and sharpest screen in its class, namely a 10.1" capacitive touchscreen with 1280 x 800 pixels. This makes the oscilloscope ideal to read all your measurements and to zoom in and out easily, just like you are used to on your smartphone. Thanks to the excellent high waveform capture rate and sample rate, it guarantees a responsive and reliable scope that can measure even the smallest signal errors. The 10-bit A/D converter is a fourfold improvement compared to the standard 8-bit A/D converters. You get a sharper signal with a lot of details.
R&S Full Package RTB
The Rohde & Schwarz RTB-BNDL Promotion gives users more than just an oscilloscope. The Full Package RTB2004 comes with 4x RT-ZP03S probe, RTB-B243 bandwidth upgrade (300 MHz) and RTB-PK1 option bundle. The RTB-PK1 bundle consists of a.o. CAN/LIN, I2C/SPI, UART/RS232 Serial decoding and triggering, ARB generator, Bode plot function and History and Segmented memory.
Specifications
| Channels | 4 |
| Bandwidth | 300 MHz |
| Sample rate |
1.25 GSa/s per channel
2x 2.5 GSa/s interleaved |
| Waveform capture rate | 50,000 wfms/s |
| Memory depth | 10 MPts per channel
2x 20 MPts interleaved |
| Input impedance | 1 MΩ |
| Rise time | <1.15 ns |
| Vertical scale | 1 mV/div - 10 V/div |
| Vertical bits | 10 |
| Horizontal scale | 1 ns/div - 500 s/div |
| Waveform/Pattern generator option | Yes |
| Display | 10.1" WXGA 1280x800 |
Accessories
The Rohde & Schwarz RTB-BNDL is supplied including
- 4x RT-ZP03S analog probe
- Power cord
Pros and cons
- Large and high-resolution 10.1" touchscreen
- 10-bit A/D converter
