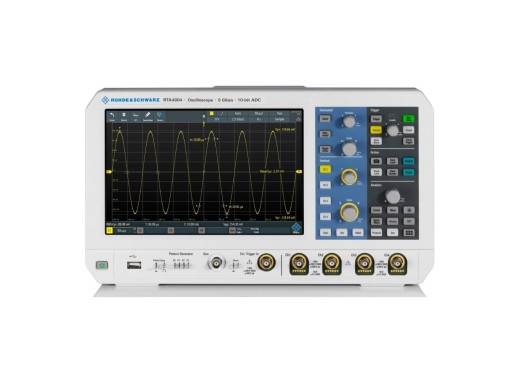

Rohde & Schwarz RTA4004 oscilloscope

The Rohde & Schwarz RTA4004 is the 2-channel version of the RTM series of oscilloscopes. This series of oscilloscopes has a high vertical sensitivity and can perform multiple functions. Furthermore, this series features a bandwidth of 200 MHz, a memory depth of 100 Mpoints and a sample rate of 2.5 Gs/s, allowing recording over long periods of time. The RTA4004 features a 10.1" TFT capacitive touchscreen display with an intuitive user interface that includes, for example, a function search menu and remote control access via LAN.

The Rohde & Schwarz RTA-4004 is also available in a bundle, upgraded to have a bandwidth of 1GHz and it comes with several options such as an arbitrary function generator, serial decoding and trigger protocols, and more! The full bundle consists of:

• RTA4004 oscilloscope
• RTA-B2410 1GHz bandwidth upgrade
• RTA-PK1 application bundle, coming with:
  • RTA-B6 arbitrary generator
  • RTA-K1 I2C/SPI trigger & decode
  • RTA-K2 UART/RS232 trigger & decode
  • RTA-K3 CAN/LIN trigger & decode
  • RTA-K5 I2S trigger & decode
  • RTA-K6 MIL-1553 trigger & decode
  • RTA-K7 ARINC 429 trigger & decode
  • RTA-K15 History & segmented memory
  • RTA-K31 power analysis
  • RTA-K36 bode plot analysis
  • RTA-K37 spectrum analysis & spectogram

Specifications

Options

Accessories

The RTA4004 comes standard with:

• Power cord
• 4x RT-ZP10 500 MHz Passive Probe

Downloads

RS RTA4000 datasheet	(2.12 MB)	Download
RS RTA4000 manual	(16.38 MB)	Download
